Aiphone DBS-1AK DB Series 1 door / 1 master kit

Aiphone DBS-1AK DB Series 1 door / 1 master kit

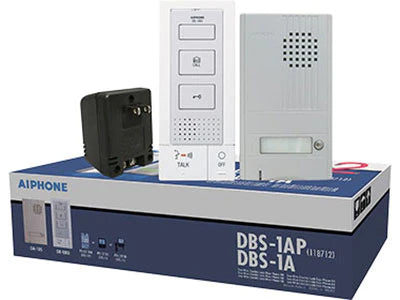

The AI-DBS-1A kit includes the AI-DA-1DS door station, the AI-DB-1MD master and power supply. All you need to add is wire and an optional strike to be ready to install!

Features:

• Door release powered by door station without the need of an additional transformer
• Backlit directory
• All Call between stations within the same tenant residence or office
• Options button to control an external device
• Call tone volume control with mute indicator
• The convenient box set is complete with a tenant master station, a 1-call entrance station, and a power supply
  (up to 3 more tenant master stations and 15 tenant substations can be added for a full 1 x 4 x 16 system)
• Optional call extension speaker

Specifications:

Communication: Hands-free (VOX) or push-to-talk (simplex)

Door Release: Entrance Station to Tenant Master Station: 2-cond., low cap, PE insulation, solid, non-shielded - use Aiphone #871802
Tenant Master Station to Tenant Sub Station: 4-cond., low cap, PE insulation, solid, non-shielded - use Aiphone #871804
Between Tenant Sub Stations: 4-cond. + 2-cond. when sharing power - use Aiphone #822206 or #871804
Power Supply to Tenant Station: 2-cond., low cap, PE insulation, solid, non-shielded - use Aiphone #871802

Wire Type: Power Supply to Entrance Station or Door Strike (cumulative): 360'(22AWG) 1,020'(18AWG)
Power Supply to Tenant Master Station: 180'(22AWG) 510'(18AWG)
Tenant Master Station to farthest Tenant Sub Station: 330'
