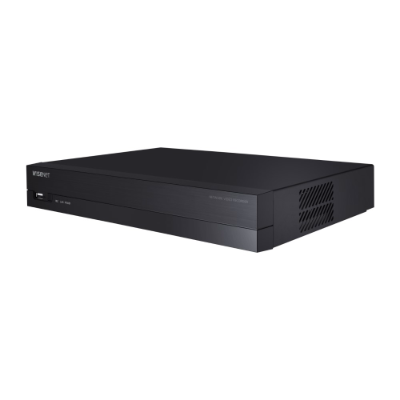

Hanwha Wisenet 4ch Pentabrid Recorder, AHD/TVI/CVI/CVBS/IP, H.265, 1x SATA, No HDD

Hanwha Wisenet 4ch Pentabrid Recorder, AHD/TVI/CVI/CVBS/IP, H.265, 1x SATA, No HDD

Hanwha's Pentabrid video recorder range is a rare find in the market as they allow both analogue and IP cameras to connect and run simultaneously on the same unit. These recorders are a fantastic way to introduce the latest technology into existing sites or to prepare for future migrations to IP.

The HAN-HRX-420 can run 4 analogue cameras, with up to 2 additional IP cameras, or when running IP only provides 6 available channels. This recorder produces up to 4K UHD resolution and can hold a single 6TB hard drive. The Pentabrid recorder can convert any channel, at any time between analogue and IP with a simple software switch so there's no additional investment needed. The Pentabrid line offers a familiar interface while accepting multiple camera brands and technologies such as AHD, TVI, CVI, CVBS and IP.

Features:

• 5-in-1 4CH Pentabrid DVR
• AHD/HDTVI/HDCVI/CVBS/IP inputs
• Max. analogue 4CH and NW 2CH (max. 10CH), up to 8MP
• H.265, H.264, MJPEG
• 8fps at 8MP, 12fps at 5MP, 30fps at 2MP recording
• Coaxial control
• Smart search (only network camera)
• 1 SATA HDD bay up to 6TB storage
• HDMI/VGA
• P2P service (QR code connect)

Specification

• Max. 6ch
• Wisenet ONVIF
• H.265, H.264, MJPEG
• CIF - 8MP
• Black, metal
• Dimensions 300.0 x 47.0 x 208.7mm
• Weight 1.5kg

Download

Datasheet of HAN-HRX-420

Installation Guide of HAN-HRX-xxx
