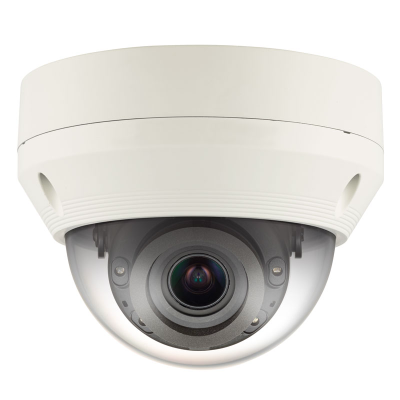

Hanwha Wisenet 4MP Outdoor Dome Camera, H.265, 20fps, 120dB WDR, 30m IR, 2.8-12mm

Hanwha Wisenet 4MP Outdoor Dome Camera, H.265, 20fps, 120dB WDR, 30m IR, 2.8-12mm

The advanced compression technology of WiseStream that is incorporated into the HAN-QNV-7080R can reduce bandwidth by up to 50% and when combined with H.265, the bandwidth efficiency can be improved by up to 75% compared to the current H.264 technology. Defocus detection helps to recognise images that are out of focus and significantly improves efficiency. Lens distortion correction easily removes imperfections in images, making image quality impeccable. Users can also adjust the optimal focus remotely via network which reduces the installation time of the camera. The HAN-QNV-7080R offers a seamless solution for small to medium sized applications and ultimately minimises time and costs for installation.

Features:

• Max. 4MP resolution
• 2.8 - 12mm motorised varifocal lens
• Max. 20fps at 4MP, Max. 30fps at 2MP
• H.265, H.264, MJPEG codec supported, multiple streaming
• Day & night (ICR), WDR (120dB)
• Motion detection, tampering, defocus detection
• micro SD/SDHC/SDXC memory slot (Max. 128GB), PoE/ 12V DC
• 30m IR
• Hallway view support
• LDC support (Lens distortion correction)

Specification

• 1/3" 4M CMOS progressive scan
• 2.8 - 12mm motorised varifocal lens F1.4
• Colour: 0.15 lux (30IRE)
• B/W: 0 lux (IR LED on)
• Pan range: 0 - 350 degrees
• Tilt range: 0 - 67 degrees
• Rotate range: 0 - 355 degrees
• RJ-45 10/100base-T ethernet
• Micro SD / SDHC / SDXC (max. 128GB), PoE
• IP66
• IK10
• PoE (IEEE802.3af, Class3) / 12V DC

Download

Datasheet of HAN-QNV-7080R

User Manual of HAN-QNV-7080R

Installation Guide of HAN-QNV-7080R
