High Sec EcoStrike, 1370kg, Pre-Load, Monitored LSS/DSS/ DPS, PTL, 10mm Lip, 10-30V DC

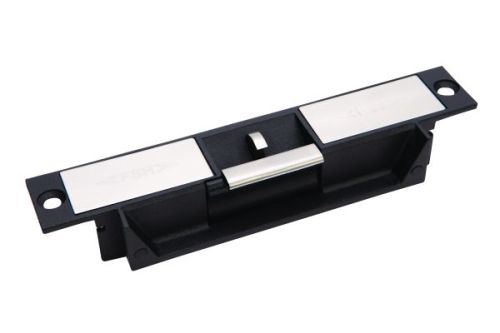

The FSH-FES90M-P motorised High Security Electric EcoStrike with up to 35kg pre-Load capability is a revolutionary electric locking solution. With a high pre-load/side-load tolerance and minimal energy consumption in 'Sleep-Mode', it is a truly "Green Locking Solution".

The strike accepts voltages from 10 to 30VDC, is pre-drilled for extension lips and has a unique and simple fail secure (power to open)/ fail safe (power to lock) switch-over function.

The door strike provides 3 forms of monitoring:

1. LSS (Lock Status Sensor)
2. DSS (Door Latch Sensor)

The electric strike consumes current less than 300mA @ 12VDC at full 35kg pre-load only during locking and unlocking action. In the locked or unlocked state (sleep-mode), the electric strike consumes current less than 15mA @ 12VDC.

The FSH-FES90M-P comes with a 10mm strike lip as standard, to prevent possible personal injury and damage to clothing as with 15mm lips.

Features:

• Releases with up to 35kg of pre-load/side load
• Motorised locking device
• Durability tested to 1.5 Mill. full pre-load cycles of 35kg
• Multi voltage from 10 to 30VDC
• Sleep mode current less than 15mA @ 12VDC
• Weather resistant
• Fully monitored
• Pre-drilled for extension lips
• Up to 1300kg holding strength

Downloads

Download Datasheets:

• FSH-FES90M-P Datasheet
• FSH-FES90M-P Installation Guide
