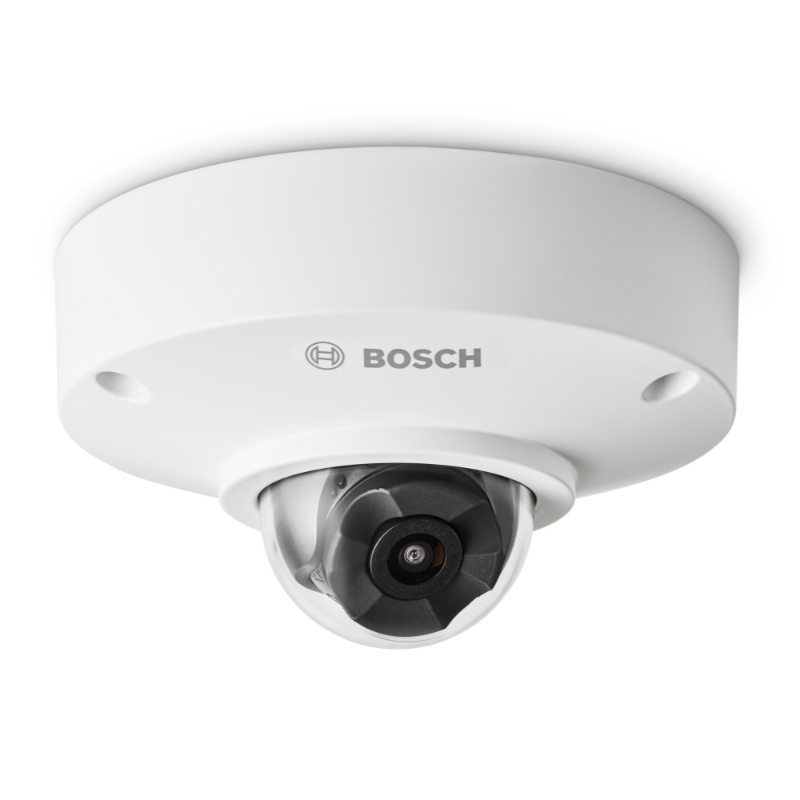

Bosch 5MP Indoor Micro Dome 3100i Camera, IVA, 131 Deg, 2.5mm, HDMI Out

Bosch 5MP Indoor Micro Dome 3100i Camera, IVA, 131 Deg, 2.5mm, HDMI Out

The BOS-NUV-3702-F02H FLEXIDOME is a 5MP indoor micro dome camera with a 2.5mm fixed lens and a 130-degree FOV. Incorporating DORI technology the micro dome can detect, observe, recognise, and identify objects and with its small form factor can be discreetly placed in many indoor applications, offering a seamless installation. The 3100i range also includes built-in Intelligent Video Analytics (IVA) Pro Buildings technology which is ideal for intrusion detection and operational efficiency in and around buildings. Without the need for any calibration, it can reliably detect, count, and classify persons and vehicles in crowded scenes. It can alert operators immediately as queues begin to form. With its IK08 rating and HDMI output function, the BOS-NUV-3702F02H can be directly connected to a Public View Monitor, making it a perfect fit for a retail environment.

This range also contains Bosch's Forensic Search feature at no additional cost, making it one of the most affordable, high analytic cameras on the market. The camera's compact and minimalist design combined with the ample mounting accessories available, offers a highly flexible and simple installation for users.

• Special Order 3 to 5 working days lead for local stock, 8 to 12 weeks if it comes from oversea factory, NO return, refund accepted.

Key Features:

• 5MP resolution
• HDMI output - Micro HDMI connector with up to1080p 30fps resolution
• IVA Pro Buildings brings reliable deep-learning based detection of persons and vehicles
• Compact and robust design for discreet use with quick and easy installation and set-up
• High Dynamic Range (HDR) to see every detail in both bright and dark areas of the scene
• Built-in Secure Element with Trusted Platform Module (TPM)
• Up to 30 fps


Specifications:

• 1/2.7 inch CMOS
• 2592 x 1944 resolution
• 120dB WDR
• Horizontal FOV: 131.2 degrees
• Vertical FOV: 91.4 degrees
• microSDHC/microSDXC SD card slot
• Operating temperature: -30 degrees to +50 degrees
• Power: PoE: 3.2 W / 4.5 W
• Dimensions: 123 x 69.2 mm
• Weight: 480g


# Special Order item ETA 8 to 10 weeks

Video

Download

Datasheet of BOS-NUV-3703-F02H
