FSH ES10M Strike, 1300kg, ANSI Footprint, Monitored DSS, PTL/PTO, 12/24V DC

FSH ES10M Strike, 1300kg, ANSI Footprint, Monitored DSS, PTL/PTO, 12/24V DC

Availbility: In Stock
Product Code: FSH-FES10M
Regular price $165.00
Regular price $299.00 Sale price $165.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Free Shipping on
Order Over $300*
Secure Online Payment
with Tax Invoice
Manufacturers
Return & Warranty
Authorised Australian
Partner With Tech Support
View full details

FSH ES10M Strike, 1300kg, ANSI Footprint, Monitored DSS, PTL/PTO, 12/24V DC

The patented FES10M, ANSI footprint, electric strikes are site interchangeable for Power To Lock (PTL) or Power To Release (PTR) through reversing the position of the "barbell" inside the strikes housing; simply unscrew the spring screw cap, remove the "barbell", reverse it and re-fix the spring screw cap. It is suitable for all types of wooden, steel, PVC, aluminium or stainless door frames. The FES10M is pre-drilled for extension lips, and comes with a 5 year warranty.

Features:

  • Stainless steel faceplate and keeper
  • Low power consumption
  • Compatible with latch depth of up to 15mm
  • IP56 Rated

Specifications:

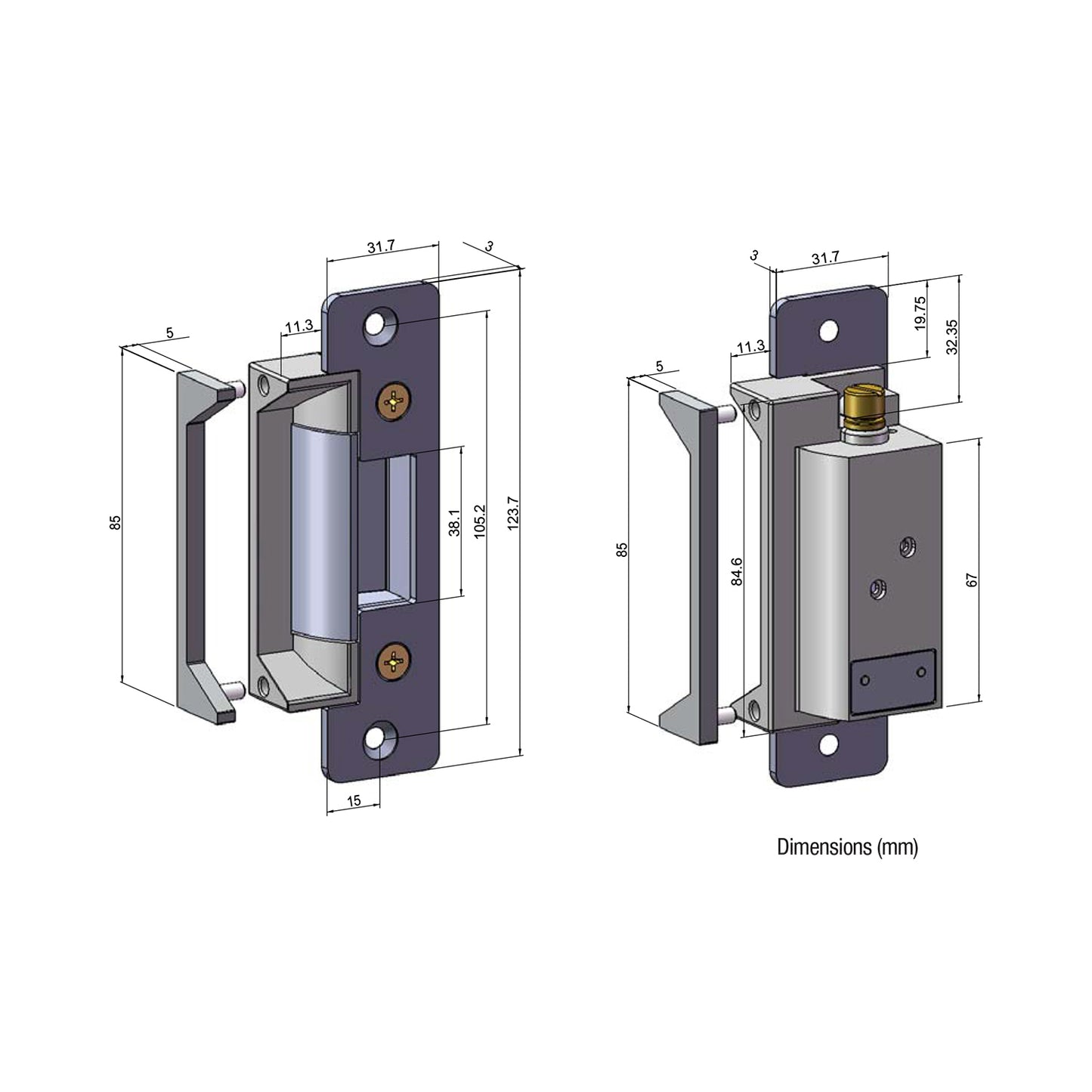

  • Dimensions: 125 x 42 x 35mm
  • 12V DC 200mA, 24V DC 100mA
  • Over 1300Kg holding force

Downloads

Download Datasheets:
