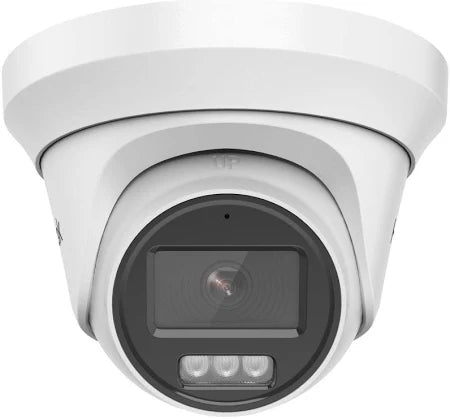

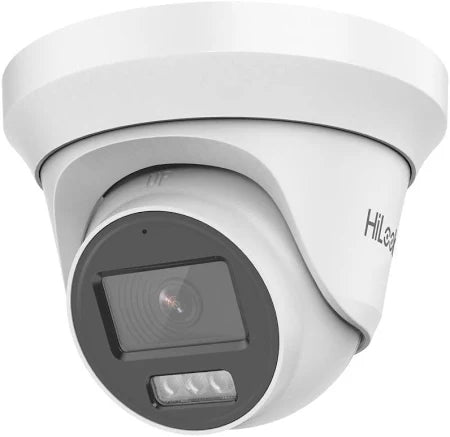

HiLook TVI4.0 5MP Outdoor Turret Camera, Dual Illuminator Buit-in Audio Mic

HiLook TVI4.0 5MP Outdoor Turret Camera, Dual Illuminator Buit-in Audio Mic

Availbility: In Stock
Product Code: THC-T257-LMS-0280B
Regular price $99.00
Regular price $158.00 Sale price $99.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Free Shipping on
Order Over $300*
Secure Online Payment
with Tax Invoice
Manufacturers
Return & Warranty
Authorised Australian
Partner With Tech Support
View full details

HiLook TVI4.0 5MP Outdoor Turret Camera, Dual Illuminator Buit-in Audio Mic, 12VDC, 2.8mm with White Light

The TVI 4.0 generation has been rigorously tested to deliver 24/7 video surveillance with an unparalleled clarity that can only be provided by a Hikvision Turbo HD camera.

Features:

  • Image Sensor: 3K CMOS
  • Max. Resolution: 2960 (H) × 1665 (V)
  • Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
  • Day & Night: ICR
  • Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 75°, Rotate: 0 to 360°
  • Signal System: PAL/NTSC

Lens

  • Lens Type: Fixed focal lens, 2.8 mm
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129°
  • Lens Mount: M12

Illuminator

  • Supplement Light Type: White Light; IR
  • Supplement Light Range: IR : up to 40m; White Light : up to 20m


  • Image Settings: Brightness, Sharpness, Smart IR
  • Frame Rate:
    • TVI: 3K @ 20fps, 4MP @ 25fps / 30 fps, 1080p @ 25fps / 30 fps

    • AHD: 5MP @ 20fps, 4MP @ 25fps / 30fps

    • CVI: 4MP @ 25fps / 30fps

    • CVBS: PAL / NTSC

  • Day/Night Mode: IR / White Light
  • Wide Dynamic Range (WDR): Digital WDR
  • Image Enhancement: Yes
  • White Balance: Auto / Manual
  • AGC: Yes

Interface

  • Video Output: Switchable TVI / AHD / CVI / CVBS

General

  • Material: Body: metal; Enclosure: metal
  • Dimension: Ø127.9 mm × 97.8 mm (Ø5.04″ × 3.85″)
  • Weight: Approx. 476 g (0.75 lb.)
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
  • Communication: HIKVISION-C
  • Language: English
  • Power Supply: 12 VDC ± 25%
  • Consumption: Max. 3.3 W
  • Protection: IP66

Download

Datasheet THC-T257-LMS-0280B

User Manual THC-T257-LMS-0280B
