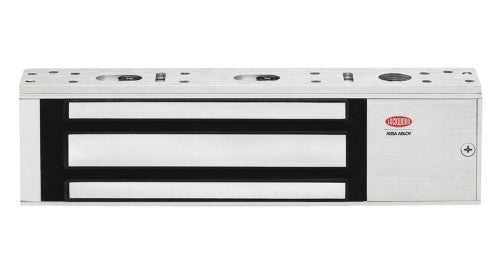

Lockwood EMZ8-SM Standard Mag, 580kg, Single, Monitored, PTL, Surface Mount, 12/24V DC

Lockwood EMZ8-SM Standard Mag, 580kg, Single, Monitored, PTL, Surface Mount, 12/24V DC

Availbility: In Stock
Product Code: ASAEMZ8-SM-S
Regular price $299.00
Regular price $416.00 Sale price $299.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Free Shipping on
Order Over $300*
Secure Online Payment
with Tax Invoice
Manufacturers
Return & Warranty
Authorised Australian
Partner With Tech Support
View full details

Lockwood EMZ8-SM Standard Mag, 580kg, Single, Monitored, PTL, Surface Mount, 12/24V DC

The Single Series Electromagnetic Locks operate with holding forces from 140Kg up to 580Kg. Covering a range of applications, the Z2, Z4 and Z8 electromagnets are ideal for applications from cupboard doors through to high-use commercial swing doors. With fixing options including wood, aluminium and steel constructions, as well as glass door applications, the range caters to most electromagnetic needs.

Features:

  • 550 - 580Kg Holding Force
  • Self alignment: armature plate pivots to accommodate door drop
  • Silent operation: no humming or buzzing
  • Monitoring: Reed switch monitoring on all models.

Specifications:

  • 266 x 72 x 40mm
  • 12V / 24V DC
  • 512mA @ 12V DC, 250mA @24V DC
