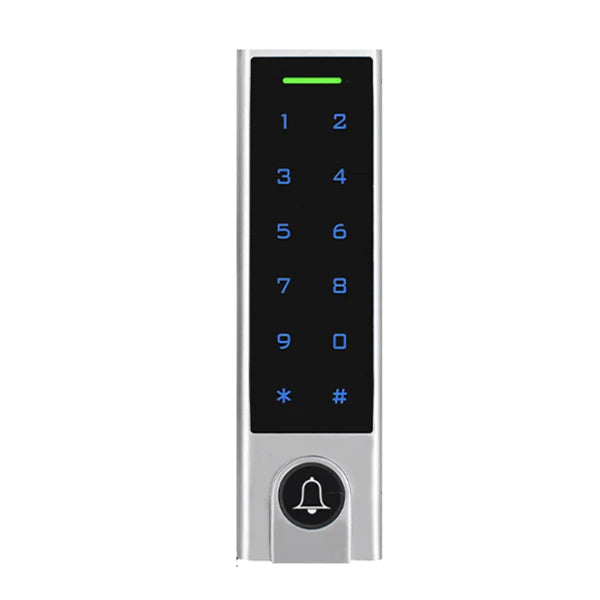

McGrath MLA02S Single Door Control Bluetooth Wifi Door Bell TTLock

McGrath MLA02S Single Door Control Bluetooth Wifi Door Bell TTLock

Features:

This product is a slimline Access Control panel with TT Lock app, pin number and RFID fobs which works with electric strike , magnet latches, auto door openers, garage doors, sliding gates. ETC

Specifications:

• Unlocking method: APP, password, card
• Support app: TTlock/Tuya (optional)
• Sizes: L 148mm * W 43.5mm * H 22mm
• Colour: White
• Material: Zinc alloy
• Card type: 13.56KHz Card Mifare card
• Power supply: DC12V
• App management, password are generated from app and can be settled to limited by time
• Can be used as Wiegand reader with LED & buzzer output user data can be transferred
• Data storage in cloud service
• Attendance records and history can be checked remotely
• Easy to upgrade from normal door system to smart door access system
• Auto lock: auto lock within 5 seconds of unlocking
• Real time monitoring: admin receives a push notification when a user unlock with App
• Message notification: a message is pushed to the previous admin when the lock is reset
• 5,000 users capacitive for optional

Download

Datasheet of ML-A02-S
