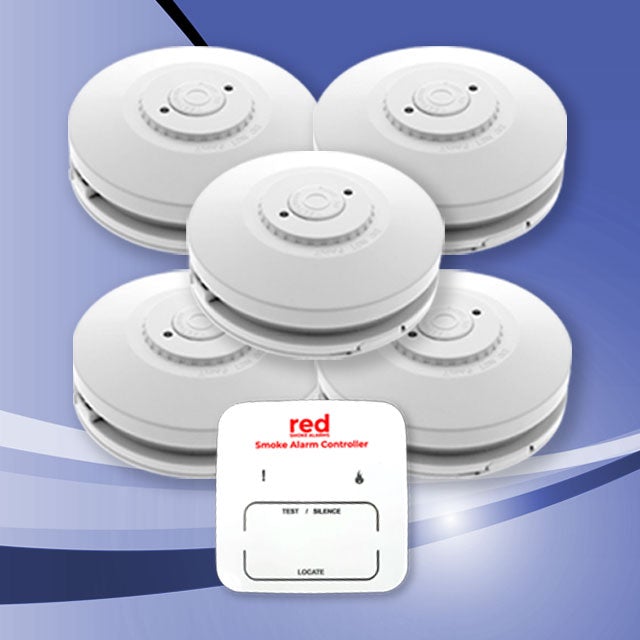

Wireless Interconnected Photoelectric Smoke Alarms 5 X R10RF +1 Controllers

Wireless Interconnected Photoelectric Smoke Alarms  5 X R10RF +1 Controllers

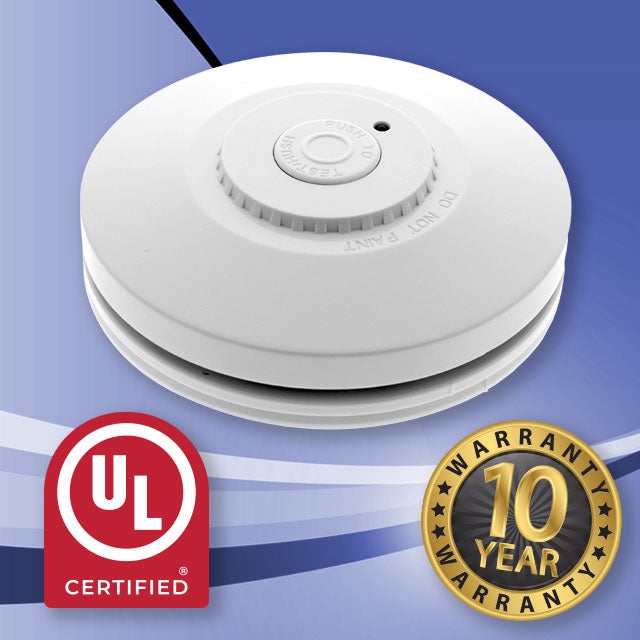

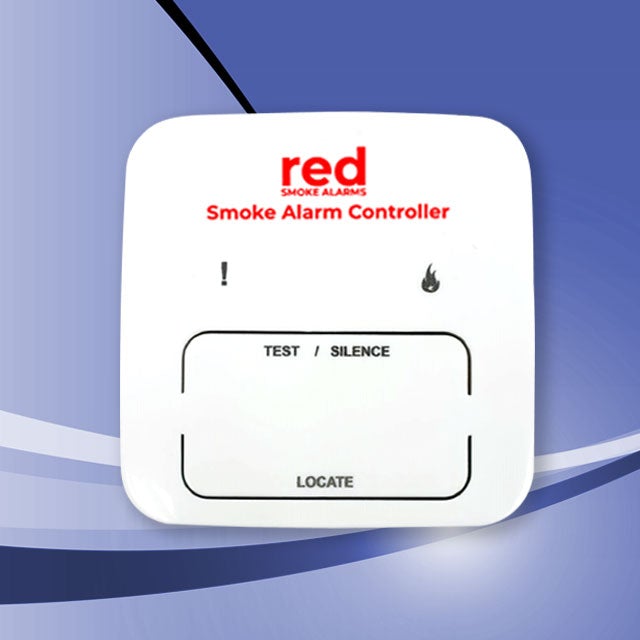

A photoelectric, 10 year sealed lithium battery RF wireless smoke alarm. Interconnectable with up to 20 Red smoke alarms (240v hard wired and/or 10 year RF wireless smoke alarms) and includes a test/hush button and visual indicators. The R10RF smoke alarm is approved and certified to meet AS3786:2014 and is fully compliant to meet the Australian 2022 smoke alarm legislation. The Red Smoke Alarm Controller can connect wirelessly to this smoke alarm.

Features

• Photoelectric technology
• RF Wireless interconnection
• 10 year sealed lithium battery
• Hush Function
• Self-test Function
• Interconnectable with up to 20 units (240v hard wired and / or RF wireless smoke alarms)
• 10 Year Manufacture Warranty
• Power: 3V DC 10 year Lithium Sealed Battery
• Alarm sound: 85 dB at 3m minimum
• Low battery indication: 1 LED (red for warning & Low battery)
• Hush function: Button for test/hush
• Alarm duration: 10 min for hush
• Alarm indication: Sound: Alarm; Sound: Signal; Visual: 1 LED (red for warning & low battery)
• Transmission Frequency: 433.92 MHz
• Operating Distance: 20m indoor use line of sight; 100m in free field.
• Temperature: 0-45C
• Humidity: 5-95%
• Size: 14mm x 39mm
• Maximum number of devices: 20 pieces for wireless alarm
• Compliance: AS 3786: 2014/amdt 2:2018
• Easy DIY Installation.

Video

Download

Datasheet R10RF-RED
