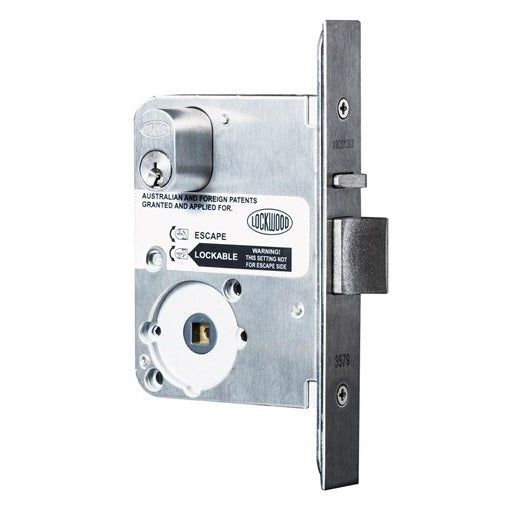

3579 High Sec Electric Mortice Lock, 60mm Backset, KOM, PTO/PTL, 12-24V DC (SCEC)

For use in high security government, institutional and commercial projects. The 3579 Series Mortice Lock has been successfully SCEC approved for secure area applications.

Features:

• Restricted handling type features of the lock (external hub fixed, internal hub released under fire/emergency release, reversible latch are accessible without removing the latch
• 570 oval type cylinders and retaining pin can be used (cylinder must also be SCEC approved for secure area)
• 2 x 1.2mm stainless steel plates fixed through lock provides increased strength to cylinder and latch areas of the lock
• 12V / 24V DC
• 500mA max, 80mA holding current @ 12V DC
• 275mA max, 50mA holding current @ 24V DC

Downloads

Download Datasheets:

• PD-3579HS Series Datasheet

• PD-3579 Series Installation Guide
