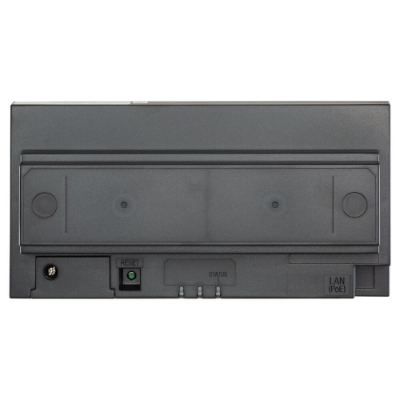

Aiphone IP Gateway Adaptor

The AI-IXGW-GW IP gateway adaptor adds the capability of expanding an Aiphone IX or IXG system from the calling station to a person's phone. Utilising a cloud-based system and the IXG mobile app, visitor screening can be done remotely with a mobile device and supports both Android and iOS operating systems.

Features:

• PoE compliant
• DIN rail mountable
• 8 simultaneous call paths, per tenant station
• Supports up to 9,999 mobile devices in total

Specifications:

• Power source: PoE
• Power consumption: 2.1W (standby), 2.9W (max)
• LAN: Ethernet (10BASE-T, 100BASE-TX)
• Operating temperature: -10 to 50 degrees Celsius
• Dimensions: 108 x 210 x 60mm

Download

Datasheet of APHIXGW-GW
