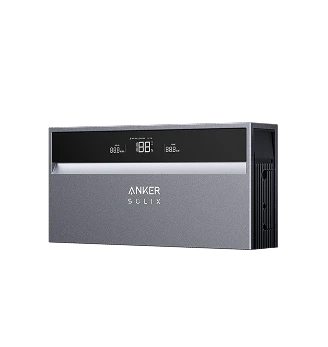

Anker AS-A5102GZx, SOLIX X1 Hybrid Single-Phase Power Module

Features:

Battery

  • Battery Type: LFP
  • Charge Voltage Range: 390-550VDC
  • Discharge Voltage Range: 370-500VDC
  • Battery Capacity: 5-30kWh

PV Input

  • Max Input Power: 10kW / 12kW
  • Max Input Voltage: 600VDC
  • MPPT Voltage Range: 80-550VDC
  • Start-up Voltage: 100VDC
  • Rated Input Voltage: 360VDC
  • Max PV Input Current: 16/16ADC
  • Isc PV Array Short Circuit Current: 20/20A
  • Number of MPPTs: 2
  • Number of Strings per MPPT: 1

AC Output (On-Grid)

  • Rated Output Power: 5kW / 6kW
  • Max Output Apparent Power: 5.5kVA / 6.6kVA
  • Rated Output Voltage: 220/230/240VAC
  • Rated Frequency: 50/60Hz
  • Power Factor: 0.8ind-0.8cap
  • THDI (@Rated Power): <3%

AC Output (Off-Grid)

  • Rated Output Power: 5kW / 6kW
  • Max Output Apparent Power: 5.5kVA / 6.6kVA
  • Peak Output Apparent Power (Duration): 10kVA (10s)
  • Max Units in Parallel: 2
  • Rated Output Voltage: 220/230/240VAC
  • Rated Frequency: 50/60Hz
  • THDU (@Linear Load): <2%
  • Switch Time: <10ms

Specifications

  • Weight: 19kg
  • WxHxD Dimensions: 670 x 335 x 150 mm
  • Noise: ≤ 30 dB
  • Mounting Options: Ground or Wall
  • Operation Temperature: -25°C to 60°C
  • Relative Humidity: 0% to 100%
  • Max Operating Altitude: Up to 4,000 m, Power Derates from 2,000m
  • Assembly Ingress Rating: IP66
