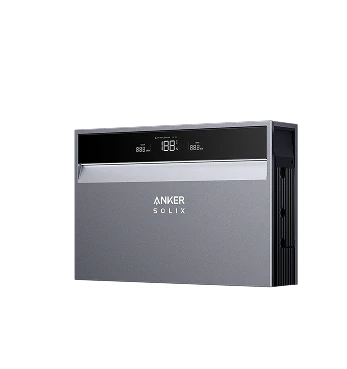

Anker AS-A5103GZx, SOLIX X1 Hybrid Three-Phase Power Module

Anker AS-A5103GZx, SOLIX X1 Hybrid Three-Phase Power Module

Availbility: In Stock
Product Code: AS-A5103GZ1
Login To View Price
Free Shipping on
Order Over $400*
Secure Online Payment
with Tax Invoice
Manufacturers
Return & Warranty
Authorised Australian
Partner With Tech Support
View full details

Anker AS-A5103GZx, SOLIX X1 Hybrid Three-Phase Power Module

Features:

Battery

  • Battery Type: LFP
  • Voltage Range: 350-450VDC
  • Battery Capacity: 5-30kWh

PV Input

  • Max Input Power: 10kW / 16kW / 20kW / 24kW
  • Max Input Voltage: 1,000VDC
  • MPPT Voltage Range: 140-950VDC
  • Start-up Voltage: 160VDC
  • Rated Input Voltage: 600VDC
  • Max Input Current: 16/16ADC
  • Isc PV Array Short Circuit Current: 20/20ADC
  • Number of MPPTs: 2
  • Number of Strings per MPPT: 1

AC Output (On-Grid)

  • Rated Output Power: 5kW / 8kW / 10kW / 12kW
  • Max Output Apparent Power: 5.5kVA / 8.8kVA / 11kVA / 13.2kVA
  • Max Units in Parallel: 6
  • Rated Output Voltage: 220/380VAC, 230/400VAC, 3L+N+PE
  • Rated Frequency: 50/60Hz
  • Power Factor: 0.8ind-0.8cap
  • THDI (@Rated Power): <2%

AC Output (Off-Grid)

  • Rated Output Power: 5kW / 8kW / 10kW / 12kW
  • Max Output Apparent Power: 5.25kVA / 8.4kVA / 10.5kVA / 12.6kVA
  • Peak Output Apparent Power (Duration): 10kVA (10s) / 16kVA (10s) / 20kVA (10s) / 20kVA (10s)
  • Max Units in Parallel: 6
  • Rated Output Voltage: 220/380VAC, 230/400VAC, 3L+N+PE
  • Rated Frequency: 50/60Hz
  • THDU (@Linear Load): <2%
  • Switch Time: <10ms

Specifications

  • Weight: 30kg
  • WxHxD Dimensions: 670 x 450 x 150 mm
  • Noise: ≤ 30 dB
  • Mounting Options: Ground or Wall
  • Operation Temperature: -25°C to 60°C
  • Relative Humidity: 0% to 100%
  • Max Operating Altitude: Up to 4,000 m, Power Derates from 2,000m
  • Assembly Ingress Rating: IP66
