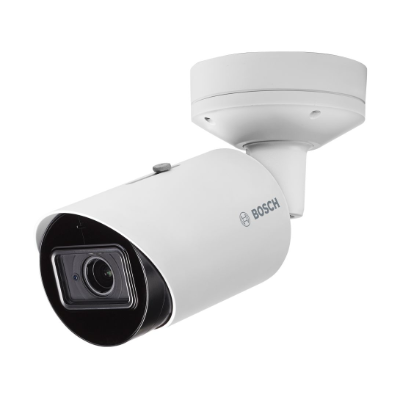

Bosch 5MP Outdoor DINION 3100i IR Bullet Camera, EVA Forensic Search, HDR, IK10, 3.3-10.2mm

Bosch 5MP Outdoor DINION 3100i IR Bullet Camera, EVA Forensic Search, HDR, IK10, 3.3-10.2mm

The Bosch 3100i series is built for high quality and 24/7 performance while delivering excellent image quality.

The BOS-NBE-3503-A DINION is a 5MP outdoor bullet camera with a 3.2mm to 10mm varifocal lens and a 30m IR range. Incorporating DORI technology, this camera can detect, observe, recognise and identify objects in outdoor applications with its IK10 and IP66 rating. The 3000i range also includes built-in essential video analytics (EVA) technology to trigger relevant alerts and allows users to quickly retrieve data. This range is also compatible with Bosch's Forensic Search feature at no additional cost, making it one of the most affordable, high analytic cameras on the market. The camera's compact and minimalist design combined with the ample mounting accessories available, offers a highly flexible and simple installation for users.

Key Features:

• 5MP resolution
• Built-in essential video analytics (EVA) to trigger relevant alerts and quickly retrieve data
• Intelligent bitrate management
• Data security including a trusted platform module
• Fully configurable H.265 multi-streaming
• Built-in IR illuminator with 30m (98 ft) viewing distance
• Up to 30 fps
• Two way audio and alarm

Specifications:

• 1/2.8 inch CMOS
• 5MP resolution
• 3.2 - 10 mm motorised varifocal lens
• 120dB WDR
• H.265; H.264; M- JPEG
• microSDHC / microSDXC SD card slot
• ONVIF Profile S, G, GB, T
• IP66, IK10
• Operating temperature: -30 degrees to +50 degrees
• Power: PoE: 3.5 W / 10.5 W; 12 VDC: 3.1 W / 9.5 W
• Dimensions: 101.5 x 307 mm
• Weight: 1.63kg

Video

Download

Datasheet of BOS-NBE-3503-AL

User Manual of BOS-NBE-3503-AL

Installation Document of BOS-NBE-3503-AL
