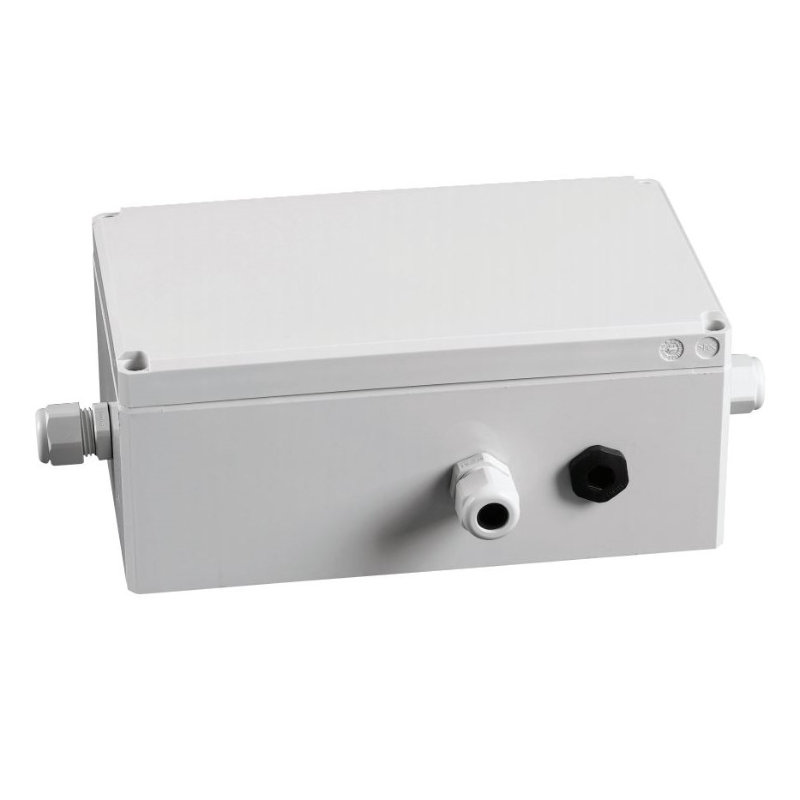

Bosch MIC-ALM-WAS-24 interface box, Alarm, Washer Pump, to suit MIC 7000 PTZ, 24VAC

The Bosch MIC Alarm/Washer Interface unit consists of a weatherproof enclosure that houses surge-protected interface connections for alarm inputs, alarm outputs, washer relay, power connection, and serial data link to MIC7000 cameras. The unit is equipped with removal screw terminal blocks to simplify attachment of electrical connections to external cabling. Board mounted LED indicators provide status and diagnostic feedback.

• Special Order 3 to 5 working days lead for local stock, 8 to 12 weeks if it comes from oversea factory, NO return, refund accepted.

Key Features:

• Provides alarm and washer interface connections for MIC7000 cameras
• Impact-resistant polycarbonate enclosure rated to IP67 and NEMA 4X
• Watertight cable glands included
• Push button to activate/test connected washer pump


Specifications:

• Power: 24 VAC, 50/60 Hz, 1.5W consumption
• Operating Temperature: -40 degrees to +60 degrees
• Dimensions: 200mm x 120mm x 79mm
• Weight: 0.6kg
• Material: Polycarbonate
• Colour: Grey, sand finish
• IP67 & NEMA 4, 4X, 6, 12, 13

# Special Order item ETA 8 to 10 weeks

Download

Datasheet of BOS-MIC-ALM-WAS-24
