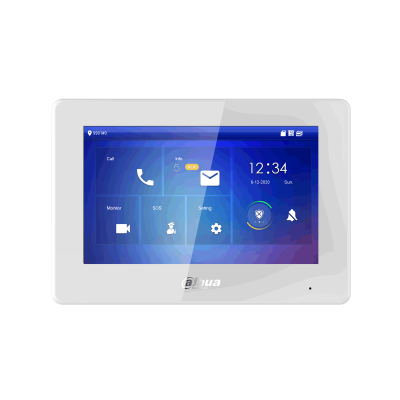

Dahua DHI-VTH5422HW-W 7-Inch 2-Wire and Wi-Fi IP Intercom Monitor – White

The Dahua DHI-VTH5422HW-W is a white indoor intercom monitor with a 7-inch capacitive touchscreen, digital 2-wire communication and 2.4 GHz Wi-Fi. View a connected outdoor station or IP camera and speak with visitors using two-way audio with echo suppression.

Key Features

• 7-inch TFT capacitive touchscreen with 1024 × 600 resolution.
• Digital 2-wire communication, Wi-Fi and a 10/100 Mbps Ethernet port. The wired network connection uses either the two-wire port or Ethernet port.
• Two-way audio with a built-in speaker and echo suppression.
• Outdoor station and IP camera monitoring, with H.265 and H.264 video decoding.
• MicroSD card support up to 64 GB; video messages require an SD card inserted in the monitor.
• Six alarm inputs, one alarm output and SOS support. Any alarm input can be used for a doorbell.
• Configurable do-not-disturb mode and viewing of text information released by the management centre.
• Extension support: up to three extensions for villas or two for apartments.

Technical Specifications

• Model: DHI-VTH5422HW-W.
• Colour: White.
• Display: 7-inch TFT capacitive touchscreen, 1024 × 600.
• Operating system: Embedded Linux.
• Wi-Fi: 2.4 GHz, IEEE 802.11b/g/n.
• Wireless security: WPA/WPA2; WPA-PSK/WPA2-PSK.
• Network ports: One two-wire port and one 10/100 Mbps Ethernet port; select one wired connection.
• Video decoding: H.265 and H.264.
• Audio: One audio input, built-in speaker, two-way audio and echo suppression.
• Storage: MicroSD card up to 64 GB.
• Alarm connections: 6 inputs, 1 output.
• RS-485: 1 port.
• Power supply: 48 VDC, 1.25 A.
• Power output: 1 × 12 V / 200 mA.
• Power consumption: Standby ≤ 2 W; working ≤ 6 W.
• Installation: Surface mount.
• Casing: PC + ABS.
• Dimensions: 189 × 130 × 26.9 mm.
• Net weight: 0.35 kg.
• Operating temperature: −10°C to +55°C.
• Operating humidity: 10–95% RH, non-condensing.
• Included accessories: Bracket and alarm ribbon cable.

Installation Note

This is an indoor monitor for a compatible intercom system. Check outdoor station, system and power-supply compatibility before installation.
