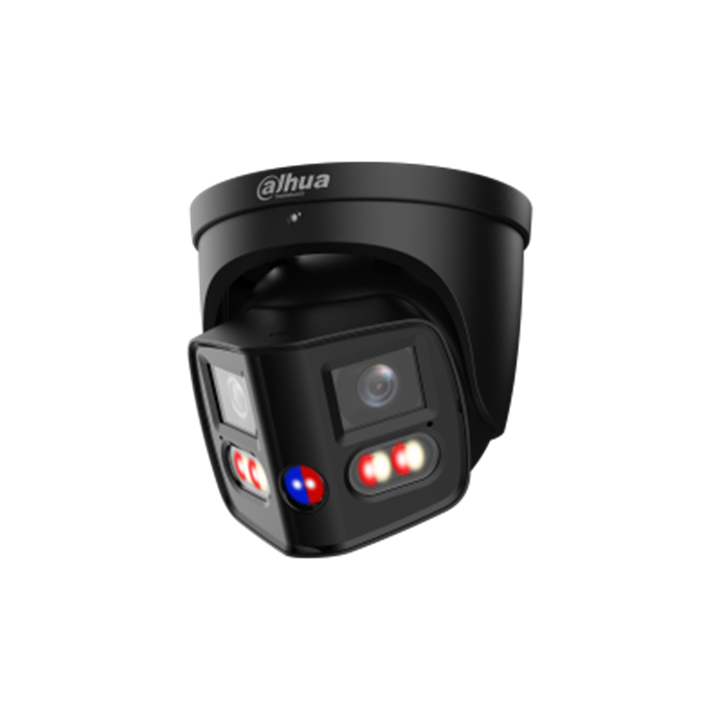

Dahua DH-IPC-PDW3859-A180-AS-PV-ANZ | 8MP | 2x4MP WizSense TiOC | AcuPick | Duo Splicing | Network Camera | 2.8mm

Key Features:

• High-Quality Imaging with 8 MP Resolution
• 180° Splicing Image by Pixel-level Splicing Fusion
• Smart Dual Light: Built-in IR and LED Lights with 3 Illumination Modes Supported
• Red & Blue Warning Lights and Alarm Sounds for Active Deterrence
• Xinghan Vision Models: Comprehensive Enhancement of Target Detection, Imaging
• AcuPick Enables Fast and Precise Human&Vehicle Search
• Electronic Enlarge and Track the Targets of Intelligent Alarms
• IP67 for Protection Against Harsh Environments

Specifications:

• 1/2.7" CMOS image sensor, high definition image.
• Outputs max 8 MP (4320 × 1944)@20 fps.
• H.265 codec, high compression rate, ultra-low bit rate.
• Built-in multi-core light, the max IR distance is 30 m and the max warm light distance is 30 m.
• ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
• WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
• Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection, face detection (full image).
• Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
• Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max 512 GB Micro SD card; built-in dual Mic; 1-ch speaker; supports two-way talk.
• 12 VDC/PoE power supply.
• IP67 protection.
• Sound and light alarm (red and blue lights).
• SMD 4.0.
• Supports one-tap arming and disarming.
• SMD area can be set in warm light areas that support triggering alarms.
• EPTZ: Enlarge and track the targets of intelligent alarms

Download

Datasheet of DH-IPC-PDW3859-A180-AS-PV-ANZ
