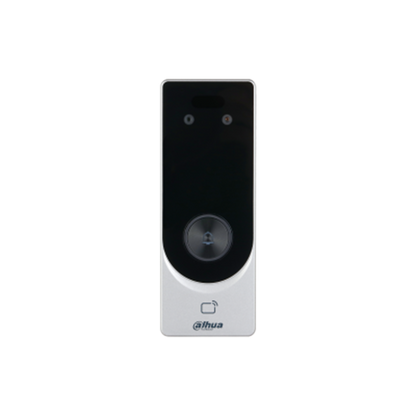

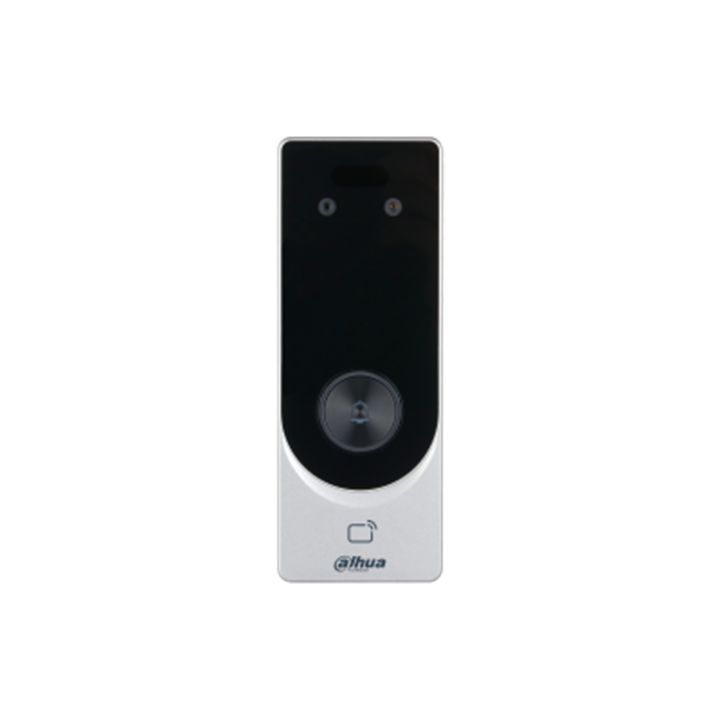

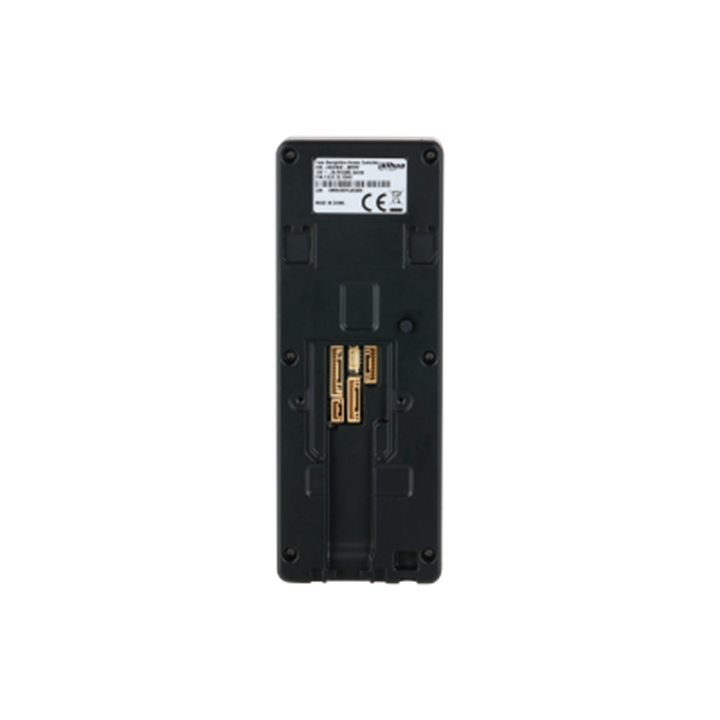

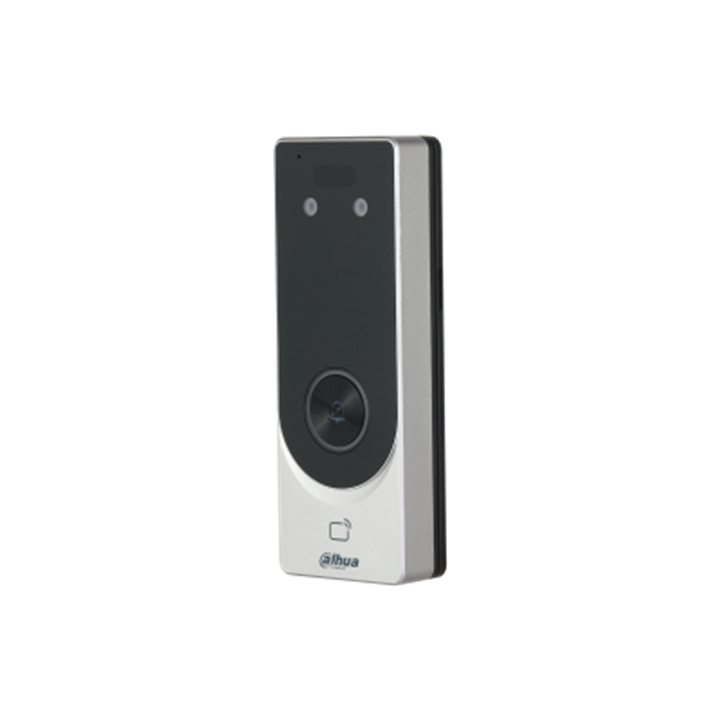

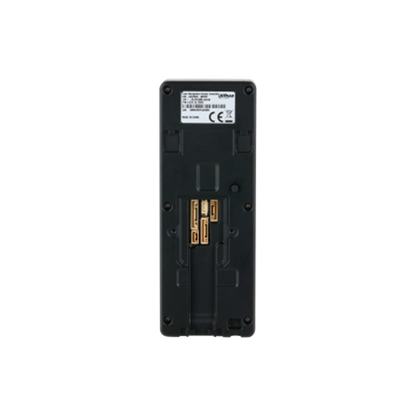

Dahua DHI-ASI3103F-MEPW, QR Code, Face Recognition, Card Swiping, Remote Face Recognition Access Controller

Features:

• Slim Design to Fit Narrow Door Frame
• 10,000 Faces, 10,000 Cards and 300,000 Records
• 2-MP CMOS Dual-lens Camera, DWDR
• POE and 12V 1A Power Output for External Lock and Reader
• Mechanical Vistor Call Button with Breathing Light
• Easy Configuration via Wi-Fi AP Mode and Mobile Web Client
• Remote Unlock via Bluetooth

Specification

• Includes a 2-megapixel CMOS dual-lens camera that supports IR illumination and WDR.
• Unlocks through face, IC and ID cards and QR code. You can also combine these methods to create your own personal unlock methods, and unlock based on periods.
• Supports 10,000 users, 10,000 faces, 10,000 cards, 10,000 Bluetooth cards, and 300,000 logs.
• Recognizes faces 0.3 m to 1.5 m away with 99.9% accuracy at a 1:N matching speed of 0.2 seconds per person.
• Offers mask detection.
• Supports visitor QR codes and the doorbell function.
• Features visitor call and supports remote operation through the companion app.
• Network connectivity through TCP/IP and Wi-Fi.
• Supports PoE power supply.
• IP65-rated protection.
• Includes a power supply that provides up to 12 V /1A, and PoE power supply up to 12 V/0.5 A for electromagnetic locks and card readers.
• Supports breathing LED and tri-color status indicators.
• Supports connecting to DSS Pro, SmartPSS Lite and DMSS.

Download

Datasheet of DHI-ASI3103F-MEPW
