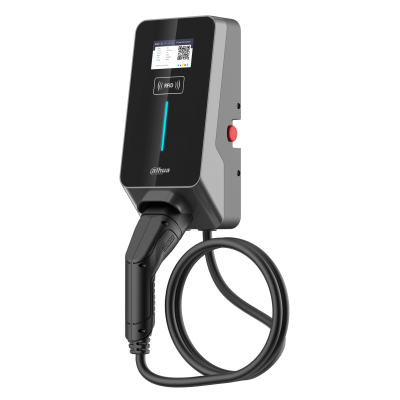

Dahua EV Charger 7KW Single-Phase Intelligent Electric Vehicle Charger

Dahua EV Charger 7KW Single-Phase Intelligent Electric Vehicle Charger

Availbility: In Stock
Product Code: DHI-ITSDY-5101-07
Regular price $1,600.00
Regular price Sale price $1,600.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Free Shipping on
Order Over $400*
Secure Online Payment
with Tax Invoice
Manufacturers
Return & Warranty
Authorised Australian
Partner With Tech Support
View full details

Dahua Intelligent Electric Vehicle Charger DHI-ITSDY-5101-07, Power Rated 7KW 1-Phase

Features:

  • 3.5-inch LCD display.
  • 3 charging methods: Free vending (plug & play), RFID control, and app control.
  • Supports OCPP 1.6J and Modbus TCP.
  • Working temperature: –30 °C to +65 °C (–22 °F to +149 °F).
  • DC 6mA RCD function protection.
  • IP65 and IK10 rated.
  • 3 year warranty.
  • Require Licence Electrician Installer

Technical Specification

  • Power Supply – 230 VAC, 50/60 Hz, 1-Phase
  • Rated Power – 7 kW
  • Charging Current – 32 A max
  • Input Cable Wiring Method – L/N/PE
  • Socket Outlet or Connector Type – Cable 3.5 m (11.48 ft), type 2
  • Charging Protocol – Mode 3 (IEC 61851-1 compliant communication protocol)
  • Charging Port – Type 2 (Cable, IEC 62196 Type2 EU)
  • Ethernet Port – 1 × RJ-45 (100 Mbps Ethernet network port -IEEE1588)
  • Operating Temperature – –30 °C to +65 °C (–22 °F to +149 °F)
  • Storage Temperature – –40 °C to +75 °C (–40 °F to +167 °F)
  • Operating Humidity – ≤95% (RH), non-condensing
  • Product Dimensions – 352 mm × 155 mm × 130 mm (13.86″ × 6.10″ × 5.12″) (L × W × H)
  • Packaging Dimensions – 430 mm × 350 mm × 300 mm (16.93″ × 13.78″ × 11.81″) (L × W × H)
  • Net Weight – 3.4 kg (7.50 lb)
  • Package Weight – 4.8 kg (10.58 lb)
  • Installation Environment – Indoor and outdoor
  • Installation – Wall mount and floor standing
  • Wire – Wire cross-section: 3 × 6 mm² (9 AWG)
  • Certifications – CE, EN IEC61851-1,EN IEC61851-21-2, EN300328, EISI EN300330, EN301489-1/-17/-3/-52, EN62311, EN50364, ETSI EN 301511, ETSI EN301908-1/-2/-13, IEC62955, 2011/65/EU, 2015/863/EU
  • Protection – IP65
  • Anti-collision Grade – IK10
  • Material – PC Plastic, V0 Flame Retardant

Video



Download

Datasheet DHI-ITSDY-5101-07
