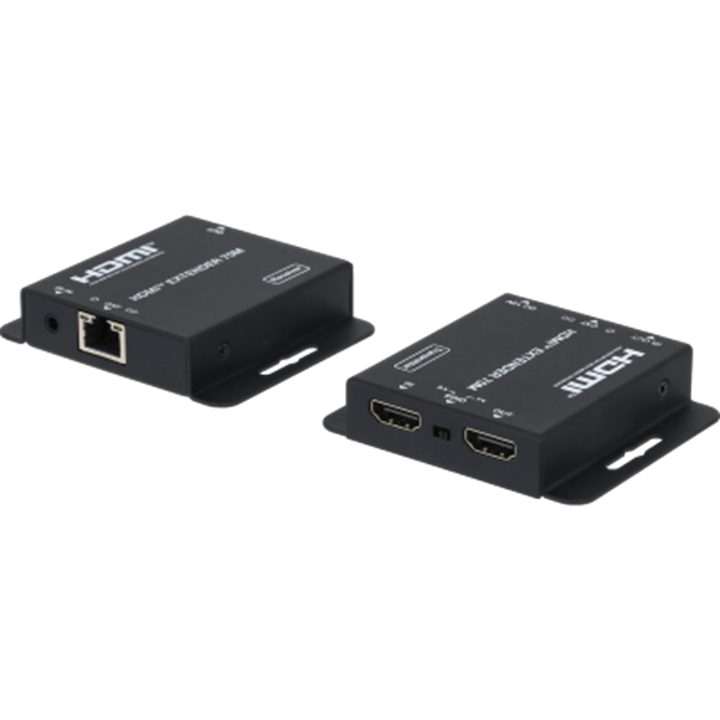

Dahua HDMI extender kit up to 15m, PFM702

HDMI extender is used to extend the transmission distance of HDMI signals, resolving the issue of unstable transmission caused by the length limits of HDMI cables (signal degradation typically occurs when cables exceed 15.0 m (49.21 ft)). It enables the long-distance transmission of high-definition signals via various media such as network cables, fiber optics, and wireless connections. Suitable for scenarios such as home theaters, conference rooms, and monitoring displays.

Features:

• HDCP 1.4 and DVI 1.0 compliant
• Supports video resolution up to 4K/2K@30 Hz YUV 4:4:4, as specified in HDMI 1.4
• The maximum transmission distance via a single CAT6 shielded network cable is as follows: 164.04 ft/50.0 m for 1080p, 131.23 ft/40.0 m for 4K@30 Hz
• Supports copying EDID from receiver display or loop out display
• Allows for cascading via additional HDMI loop out port
• Supports one-way PoC functionality (from transmitter to receiver)
• One-way IR signal transmission
• Compact design for easy and flexible installation

Downloads

Datasheet of DH-PFM702
