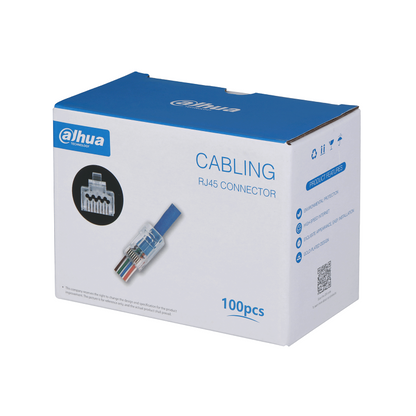

Dahua RJ45 Modular Plug, 8P/8C, Unshielded, Flat Cable, Cat6, Solid Wire, 100pcs pack
Dahua RJ45 Modular Plug, 8P/8C, Unshielded, Flat Cable, Cat6, Solid Wire, 100pcs pack
Availbility: In Stock
Product Code: DH-PFM976-631-PT
Regular price
$25.00
Regular price
$49.00
Sale price
$25.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Secure Online Payment
with Tax Invoice
with Tax Invoice
Manufacturers
Return & Warranty
Return & Warranty
Authorised Australian
Partner With Tech Support
Partner With Tech Support

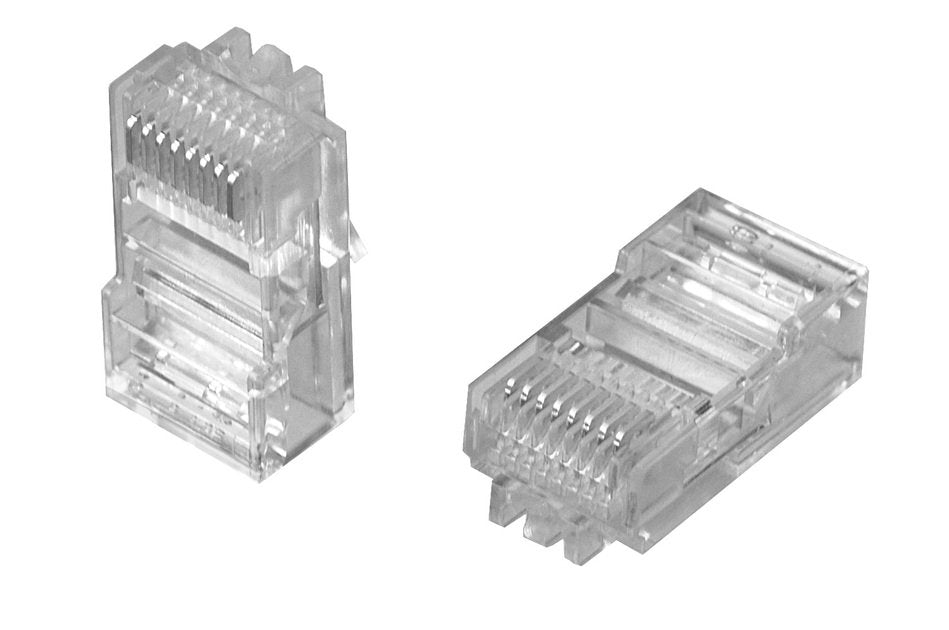

Dahua CAT-6 RJ45 connectors Push Through Typ RJ45 Modular Plug, 8P/8C, Unshielded, Flat Cable, Cat6, Solid Wire, 100pcs pack
Features:
- 8 Position RJ45 Modular Plug
- 8P8C RJ45 Crimp Plugs
- Pack of 100 pieces
- 8P8C, Flat oval cable
- RJ45 Plug
- Crimp Tool Required
- High Quality Connector
Specifications
Product Classification
| Regional Availability: | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio: | NetConnect/ CommScope |
| Product Type: | Modular Plug |
General Specifications
| Cable Type: | Flat oval, Unshielded |
| Interface: | RJ45 |
| Positions/Loaded Contacts: | 8/8 |
| Termination Type: | IDC |
Dimensions
| Compatible Cable Diameter, Maximum: | 8.89mm | 0.35in |
| Compatible Cable Diameter, Minimum: | 2.54mm | 0.1in |
Electrical Specifications
| Current Rating, maximum: | 0.75A |
| Insulation Resistance, minimum: | 500 mOhm |
| Safety Voltage Rating: | 150 Vac |
Material Specifications
| Contact Base Material: | Phosphor bronze |
| Material Type: | Glass filled polycarbonate |
| Plug Insertion Life, minimum: | 750 times |
Environmental Specifications
| Operating Temperature: | -10 °C to +60 °C (+14 °F to +140 °F) |
| Relative Humidity: | Up to 93%, non condensing |
| Flammability Rating: | UL 94 V-2 |
