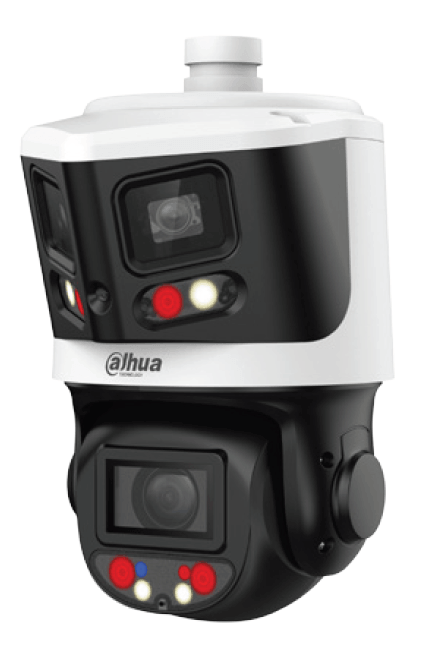

Dahua DH-SDT3E410-8P-MB-A-PV1, TiOC Panoramic and PTZ Camera, WizSense 8MP+4MP

Dahua DH-SDT3E410-8P-MB-A-PV1, TiOC Panoramic and PTZ Camera, WizSense 8MP+4MP

Availbility: In Stock
Product Code: DH-SDT3E410-8P-MB-A-PV1
Regular price $490.00
Regular price $0.00 Sale price $490.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Free Shipping on
Order Over $400*
Secure Online Payment
with Tax Invoice
Manufacturers
Return & Warranty
Authorised Australian
Partner With Tech Support
View full details

Dahua CCTV SurveillanceDahua NVRDahua IP CamerasDahua Accessories

Dahua DH-SDT3E410-8P-MB-A-PV1 | 8MP+4MP TiOC Panoramic and PTZ | 10x Optical Zoom | Active Deterrence | IP66

*Note: This camera requires 2 channels on the NVR*

The Dahua DH-SDT3E410-8P-MB-A-PV1 delivers a dual-lens panoramic and PTZ network camera solution, combining an 8MP fixed wide-angle lens with a 4MP 10x optical zoom PTZ lens for broad coverage and detailed close-up capture in a single unit. Featuring Starlight low-light performance, the camera produces full-colour footage in near-darkness for reliable around-the-clock surveillance. Built-in active deterrence includes an integrated siren and flashing red and blue warning lights that trigger automatically on detection to deter intruders in real time. AI-powered perimeter protection filters human and vehicle movement from irrelevant motion, keeping alerts accurate and meaningful. PoE support simplifies installation to a single cable, making it well suited to residential, commercial, and industrial applications.

Key Features:

  • Panorama: Outputs a 180° wide-angle splicing image for comprehensive coverage.
  • High-Quality Detail: 1/2.8″ 4 Megapixel STARVIS™ CMOS sensor for sharp, clear images.
  • 10x Optical Zoom: Powerful zoom for capturing distant objects with precision.
  • High-Resolution Video: Supports up to 25/30fps at 8MP for smooth, detailed video.
  • Long-Range Night Vision: IR distance up to 70 meters for excellent visibility in the dark.
  • Auto Tracking 3.0: Advanced auto-tracking for following moving objects.
  • Smart Tracking: Intelligent tracking for accurate movement detection.
  • Perimeter Protection: Enhanced features to safeguard your property.
  • Active Deterrence: Built-in sirens and LEDs to deter potential threats.
  • Smart Dual Light+: Combines infrared and white light for optimal illumination.



Specification:

  • Panorama: Outputs 180° wide angle splicing image
  • Detail: 1/2.8"4Megapixel STARVIS™ CMOS
  • 10x optical zoom
  • Starlight technology
  • Max. 25/30 fps@8M
  • IR distance up to 70 m
  • Warm light illumination distance up to 30 m
  • Active deterrence
  • Auto tracking Lite
  • Perimeter protection
  • Face detection
  • SMD4.0
  • IP66
  • Smart dual light

Video


Product FAQs

1. How do the two lenses on the DH-SDT3E410-8P-MB-A-PV1 work together?
The 8MP fixed lens provides a continuous wide-angle panoramic feed of the full scene. The 4MP PTZ lens operates independently, allowing operators or the auto-tracking system to zoom in on specific subjects using 10x optical zoom while the panoramic view remains uninterrupted. Both feeds are available simultaneously from the single camera housing.

2. What does the active deterrence system actually do when triggered?
When the AI perimeter protection detects a human or vehicle entering a configured detection zone, the camera can automatically activate red and blue flashing warning lights and sound the built-in siren. These responses are intended to interrupt suspicious behaviour on-site rather than waiting for a human operator to respond. The sensitivity and activation thresholds are configurable during installation.

3. Is this camera suitable for outdoor installation?
Yes. With an IP66 weather rating, the camera is protected against dust ingress and powerful water jets, making it well-suited for outdoor installation in harsh Australian conditions, including rain, dust, and varying weather environments.

4. Is the auto-tracking feature fully automatic or does it require manual activation?
The smart auto-tracking feature on the DH-SDT3E410-8P-MB-A-PV1 operates automatically once it has been configured and enabled. When a subject enters the detection zone, the PTZ camera automatically locks onto and follows the target without requiring operator intervention. Manual PTZ control remains available at any time through compatible Dahua NVRs or management software.

5. What power supply does this camera need and why does it matter?
The camera requires PoE+ (802.3at) or DC 24V. Standard PoE (802.3af) delivers a maximum of 15.4W, which is insufficient to power the active deterrence components alongside the dual-lens system simultaneously. Confirm that your network switch or PoE injector is rated to 802.3at before installation to avoid partial feature operation.

6. Does it support local recording?
Yes. The camera supports MicroSD cards up to 512 GB, allowing onboard video storage even during network interruptions.




Downloads

Datasheets:
