Elvox 1 Button Audio/Video Door Station Silver Touch Button 4MP 160deg 24VDC

Elvox 1 Button Audio/Video Door Station Silver Residential Touch Button 4MP 160deg Plastic 24VDC

Features:

• Call towards the Apps installed on one or more smartphones
• sd-card support with 8GB-128GB capacity
• IEEE 802.11 b/g/n 2.4GHz Wi-Fi connectivity
• Firmware update support via OTA (Over the Air)
• Adjustable conversation volume
• Adjustable call ringtone volume
• Actuators activation (lock and relay)
• Notifications support for:
  • Motion detection
  • Human presence detection
  • Audio call
  • Tamper detection
• Manual recording of photos or videos
• Automatic recording of photos or videos and 5-second pre-roll
• IR-cut filter with infrared lighting for optimum night-time visibility
• Electronic ringtone connection support (optional)
• Voice assistants support (currently devices: Echo, Echo Show. Echo Flex, Echo dot, Echo Studio)
• Status luminous indicator
• Support for up to 3 pre-settable voice messages
• The device requires an Internet connection via an IPv4 network with DHCP server

Specification:

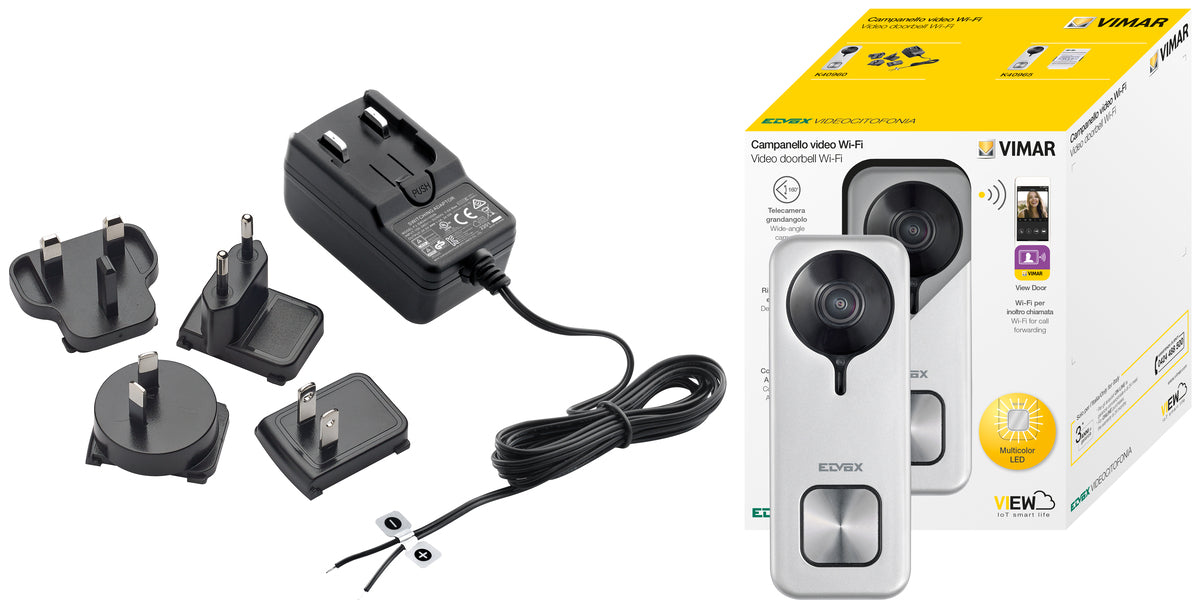

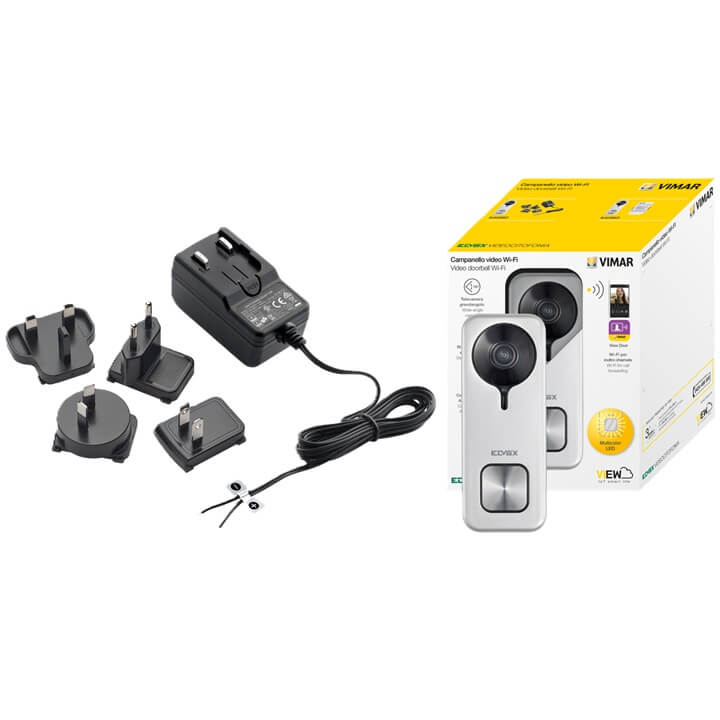

• DC input: 24V (use the power supply unit supplied in the kit or the rectifier 40962)
• CMOS sensor 1/3” 4MPx
• Max. video resolution: 2K (2560 x 1440) pixel
• H.264 video compression
• Digital WDR (wide dynamic image regulation)
• Dimensions: 52(l) x 133(h) x 24.5(p) mm
• To work correctly there must be a stable connections to a Wi-Fi 2.4 GHz network with DHCP server and access to the Internet
• the Wi-Fi video doorbell smart device should be placed at a distance from the router or from the Wi-Fi network extender that guarantees a “good” or “medium” signal level, according to the indications of the VIEW Door App
• Maximum distance between Wi-Fi video doorbell and additional ringtone: 100 m
• Wi-Fi frequency range: 2412-2472 MHz
• Wi-Fi transmitted power: < 100 mW (20 dBm)
• RF frequency range: 433.92 MHz
• RF transmitted power: < 10 mW (10 dBm)
• Protection rating: IP54
• Lock: max 12V – 1.1A (maintenance current duration can be set in the app; maintenance current equal to 200mA)
• Relay: max 12V – 2A (relay activation time can be set in the app, from 0.5s to 10s, in 0.5s steps)

Download

Datasheet of ELVK40960
