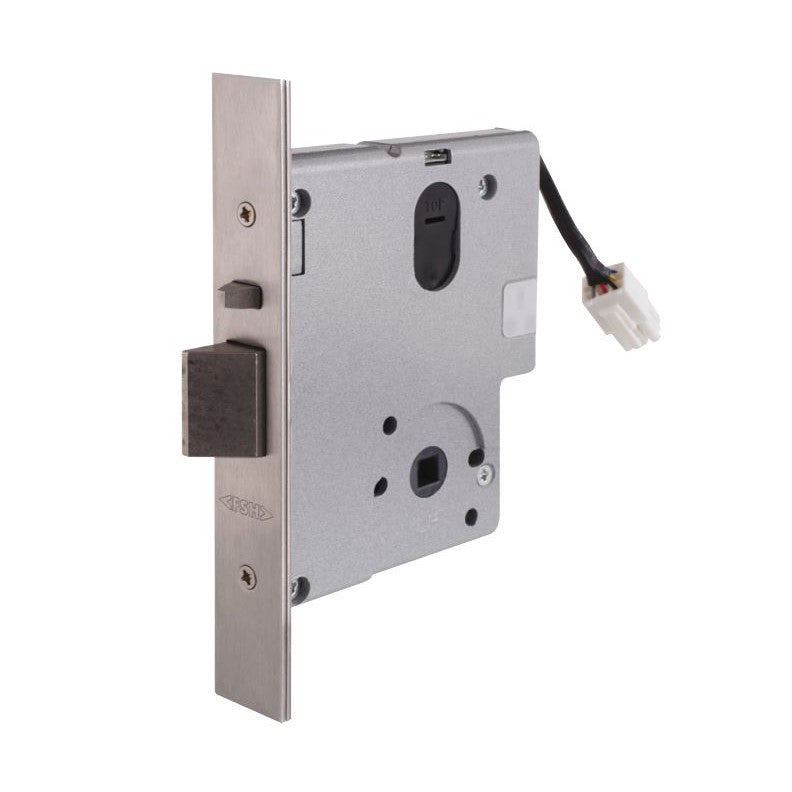

FEL990 Electric Mortice Lock, 60mm Backset, Non Monitored, PTO/PTL, 12-24V DC

The FSH-FEL990 series is a multi-function electric mortice lock that is designed to provide single-sided locking, power to lock/power to open and left/right hand operation. This mortice lock features the industry standard 9-pin cable connector. Standard lock backset is 60mm with the option of 70mm, 89mm and 127mm available on request.

Features:

  • Door position monitoring by reed switch
  • Lock status by combination of:
    • Locking bar status
    • Dead latch bolt status
    • Latch bolt status
  • Dual key override monitoring
  • Request to exit via hub or handle
  • LED indication
  • Multi-voltage - 12-24VDC/350mA momentary
  • Reverse polarity protected
  • 3m cable with industry standard 9 pin plug
  • 60mm backset
  • Fail safe / fail secure field selectable
  • Satin chrome finish
