Hanwha Wisenet 16ch PoE NVR, AI Search, H.265, 140Mbps, No HDD

Hanwha Wisenet 16ch PoE NVR, AI Search, H.265, 140Mbps, No HDD (4 SATA 24TB)

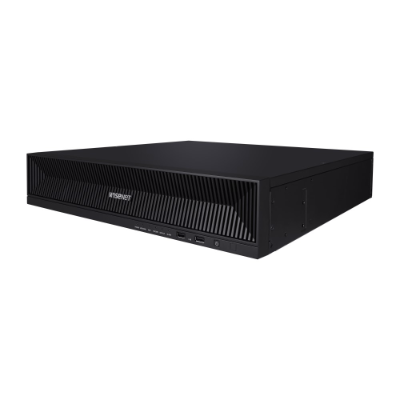

The Hanwha HAN-XRN-1620SB1 is a 16 channel NVR with the ability to record up to 32-megapixels and can produce a HDMI video output at a resolution of up to 3840 x 2160. The NVR can achieve plug and play via the 16 PoE ports, which are capable of up to 140Mbps. Supporting compression of H.265, this NVR can also sufficiently reduce storage space and costs by up to 50 percent, making it a cost-effective solution for a variety of security scenarios.

Features:

• Up to 16ch, 32MP camera supported
• H.265, H.264, MJPEG codec support
• Up to 140Mbps network camera recording
• Plug & play by 16 PoE ports
• Max. 4 HDDs supported (up to 24TB)
• HDMI / VGA local monitor
• Dynamic Event support
• Bookmark management
• P2P service (QR code connect) support

Specifications

• Inputs: up to 16ch
• Resolution: 32MP - CIF
• Protocols: SUNAPI, ONVIF
• Local display: FHD: HDMI & VGA dual monitor, UHD: HDMI single monitor
• Compression: H.265, H.264, MJPEG
• Recording bandwidth: max. 140 Mbps
• Supported HDD: 4 HDDs, up to 24TB
• Power input: 100 - 240V AC
• Power consumption: max. 310W
• PoE budget: 200W
• Colour/material: black, metal
• Dimensions: 440mm x 89.8mm x 428.4mm
• Weight: 5.76kg

Download

Datasheet of HAN-XRN-1620SB1
