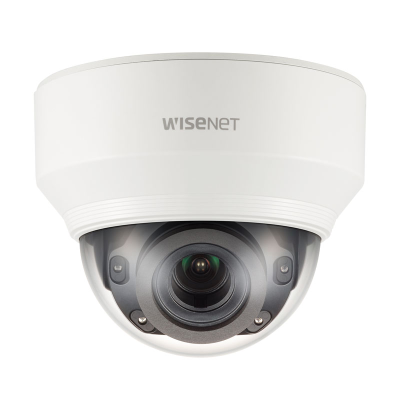

Hanwha Wisenet 5MP Indoor Dome Camera, H.265, 30fps, 120dB WDR, 30m IR, 3.9-9.4mm

Hanwha Wisenet 5MP Indoor Dome Camera, H.265, 30fps, 120dB WDR, 30m IR, 3.9-9.4mm

With cutting-edge WDR technology, the Hanwha HN-XND-8080R conquers limitations found in conventional WDR cameras while producing clear and vivid images through 150dB WDR. Part of the Wisenet X series, this camera can achieve optimal performance in low-light conditions by capturing and producing flawless images regardless of the environment or time of day. Using WiseStream II, the HN-XND-8080R reduces data by up to 99% when combined with H.265 compression, through this, system costs are greatly reduced without compromising image quality. Installation is convenient as you can connect cameras and mobile devices through USB and Wi-Fi, so no additional devices are required, saving time and money. The HN-XND-8080R is jam-packed with other features such as loitering detection, queue management, sound classification, lens distortion correction, fog detection and PTZ handover, making this camera a holistic solution for a variety of security environments.

Features:

• Max. 5MP (2560 x 1920) resolution
• Max. 30fps at all resolutions (H.265 / H.264)
• H.265, H.264, MJPEG codec supported, multiple streaming
• Day & night (ICR), WDR (120dB), defog
• Loitering, directional detection, fog detection, audio detection
• Digital auto tracking, sound classification, tampering
• Motion detection, handover
• SD / SDHC / SDXC memory slot (Max. 512GB)
• Hallway view, WiseStream II support
• IR viewable length 30m, IK08
• LDC support (lens distortion correction)
• PoE/12V DC, bi-directional audio support

Specifications

• 1/1.8" 6M CMOS progressive scan
• 3.9 - 9.4mm motorised varifocal lens F1.3
• Colour: 0.07 lux (F1.3, 1/30sec)
• B/W: 0 lux (IR LED on)
• Angular field of view: 92.1 - 38.7 degrees horizontal, 67.2 - 29 degrees vertical and 19.9 - 48.6 degrees diagonal
• Pan range: 0 - 354 degrees
• Tilt range: 0 - 67 degrees
• Rotate range: 0 - 355 degrees
• RJ-45 10/100base-T ethernet
• SD / SDHC / SDXC memory slot (max. 512GB)
• 12V DC, PoE (IEEE802.3af)
• Ivory, plastic
• Dimensions: 140.8 x 113mm
• Weight: 628g

Video

Download

HN-XND-8080R Datasheet

HN-XND-8080R User Manual

HN-XNx-x080Rx Installation Guide
