Hanwha Wisenet 5MP Outdoor Dome Camera, H.265, 30fps, WDR, 50m IR, 3.9-9.4mm

Hanwha Wisenet 5MP Outdoor Dome Camera, H.265, 30fps, WDR, 50m IR, 3.9-9.4mm

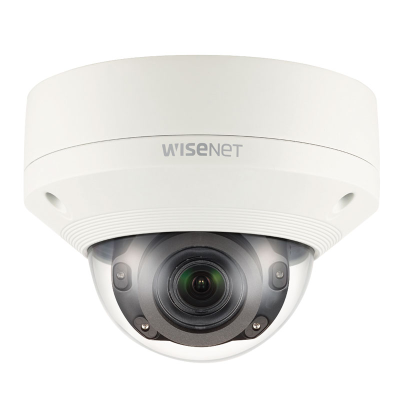

The Hanwha HN-XNV-8080R camera is a high-performance outdoor dome camera that boasts a 5-megapixel resolution, providing crystal clear images. It features a 3.9 - 9.4mm motorized varifocal lens and supports up to 30 frames per second at all resolutions. The camera utilizes H.265, H.264, and MJPEG codecs for multiple streaming and includes Day & Night (ICR), Wide Dynamic Range (WDR) of 120dB, and Defog capabilities for superior image quality in various lighting conditions.

The XNV-8080R is equipped with advanced analytics such as loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, tampering, motion detection, and handover. It also includes an SD/SDHC/SDXC memory slot with a maximum capacity of 512GB for local storage. The camera supports Hallway view and WiseStream II for optimized viewing angles and bandwidth management.

With an IR viewable length of 50m, it provides clear images even in complete darkness. The HN-XNV-8080R is built to last with IP67/IP66, NEMA 4X, IK10 protection and can be powered by PoE / 24V AC, 12V DC. This makes it a robust and intelligent choice for most installations.

Features:

• 5MP resolution
• AI-based analytics for object detection which can obtain highly accurate people counts, queue management data and heat maps showing detailed patterns of behaviour for businesses
• AI-based image enhancements, bandwidth reduction with WiseStream III and object detection including person, face and vehicle
• WiseNR II and WiseStream III (based on AI engines)
• Extreme WDR and WiseIR
• Business intelligence
• Intelligent Video Analytic (IVA) - virtual line/area, enter/exit, loitering, direction
• Analytics events: defocus, motion, tampering, audio and shock detection, sound classification and appear/disappear
• Next level cybersecurity: Cybersecurity Assurance Program (UL CAP)

Specification

• 1/1.8" CMOS progressive scan
• 3.9 - 9.4mm (2.4x) motorised varifocal
• IR viewable length: 50m
• H.265/H.264/MJPEG
• Day and Night (ICR), extremeWDR (120dB)
• RJ-45 10/100base-T ethernet
• Micro SD / SDHC / SDXC memory slot (max. 512GB)
• PoE (IEEE802.3af, Class3) / 12VDC
• Ivory, Aluminium
• Dimensions: 160mm x 118.5mm
• Weight: 1010g

Video

Download

Datasheet of HN-XNV-8080R

User Manual of HN-XNx-x080Rx

Installation Guide of HN-XNx-x080x
