Hanwha Wisenet Public View Monitoring Camera, H.265, 60fps, 150dB WDR, 4.6mm

Hanwha Wisenet Public View Monitoring Camera, H.265, 60fps, 150dB WDR, 4.6mm

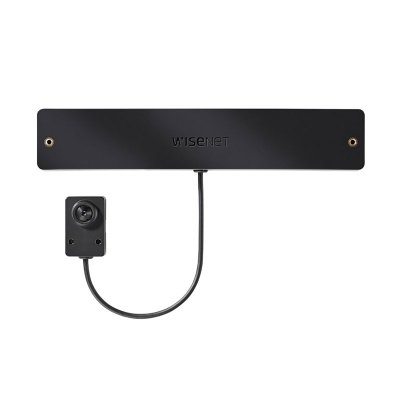

Capture and stream video to a public display monitor with the HN-TNB-6030 from Hanwha Techwin. Featuring a 1/2.8" 2MP CMOS sensor and a 4.6mm pinhole, the HN-TNB-6030 has the ability to record video at resolutions up to 1920 x 1080 at 60 fps in a 73.8 x 39.6 degree field of view. The camera has a digital IR cut filter and offers image enhancement features such as a wide dynamic range of 150Db WDR and automatic white balance, allowing you to capture images in a variety of lighting conditions.

The Hanwha HN-TNB-6030 also has audio input and output ports for two-way audio communication, as well as an internal microSD card slot for onboard storage of footage. PoE enables you to run just one wire for both data and power, while ONVIF compliance ensures compatibility with a wide range of surveillance devices.

Features:

• Max. 2MP (1920 x 1080) resolution
• 4.6mm lens
• Max. 60fps at all resolutions
• H.265, H.264, MJPEG codec supported, multiple streaming
• 150dB True WDR
• Discreet design fot public view monitoring
• Face detection overlay
• Text overlay and blinking "recording in progress"
• Hallway view, WiseStream II support
• LDC support (Lens distortion correction)
• Bi-directional audio support, alarm I/O


Specifications

• 1/2.8" 2M CMOS progressive scan
• 4.6mm lens, F2.5
• Colour: 0.06 lux
• RJ-45 10/100base-T ethernet
• Micro SD / SDHC / SDXC (max. 256GB)
• PoE (IEEE802.3af, Class3) / 12V DC
• Operating temperature: -10 to 50 degrees celsius
• Dimensions (main unit): 240 x 46 x 25mm
• Weight: 0.245kg


Video

Download

HN-TNB-6030 Datasheet

HN-TNB-6030 User Manual
