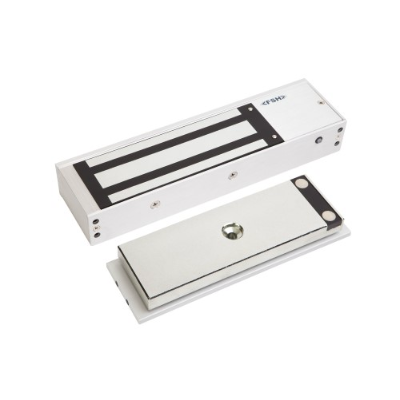

High Sec Mag, 580kg, Single Monitored LSS-TR/DSS/LED, Surface Mount 12/24V DC (SCEC)

FSH high security EMLs provide electronically addressable armature plates unique to each magnet. In conventional EMLs the armature plates are all identical to a spare, or false, plate that may be attached to the magnet whilst the door is open, giving a false secure indication to the access control system. The HS EMLs will detect an incorrect plate and signal an alarm. Conventional hall-effect monitoring is still retained.

Features:

• Government approved, fire tested and including all the features of standard FSH EMLs
• Non bonded "illegal" armature plate alarm
• LED indication and relay output, eliminates the need for reed switches
• Lock Status Sensor (LSS) output - LED indication and relay output
• Alarm time setting - 15/30/60 seconds or continual
• SCEC approved
• Anti-tamper plates prevent hostile attack on the armature plate fixing bolt
• 268 x 73 x 40mm
• Dual voltage selectable 12/24V DC

Downloads

Download Datasheets:

• FSH-FEM4000xHST Datasheet
• FSH-FEM4000HST Installation Guide
