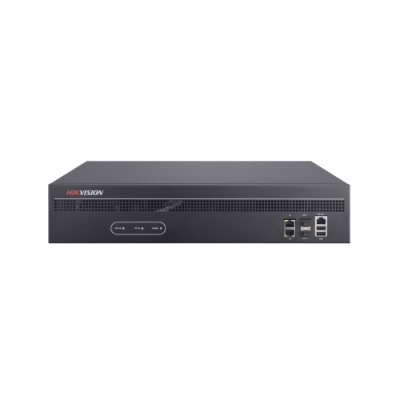

Hikvision 12 Ch Output 4K Decoder, 12x 12MP, 24x 8MP, 36x 5MP, 60x 3MP, 96x 2MP

*Special Order Item*

Designed for the high-definition video monitoring system, the Hikvision DS-6912UDI Decoder is developed on the basis of embedded hardware platform, ensuring high reliability and stability of system running. The DS-6912UDI Decoder is capable of 12ch@12MP, 24ch@8MP, 36 ch@5MP, 60ch@3MP and 96ch@2MP simultaneous decoding, and outputting decoded video via BNC, VGA, or HDMI interfaces, and it also supports multiple video stream formats like H.265, H.264+, H.264 and MPEG4. The decoded video can be displayed on a video wall or large screen.

Features:

• HDMI, VGA, and BNC output interfaces
• Up to 4K (3840 x 2160@30Hz) via HDMI output interfaces (only for even interface)
• Up to 12ch@12MP, 24ch@8MP, 36 ch@5MP, 60ch@3MP or 96ch@2MP
• H.265+/H.265, H.264+/H.264, MPEG4 and MJPEG video compression
• Supports multi-screen control when PC installed with RSC server
• Flexible display configuration options

Download

DS-69xxUDI User Manual
