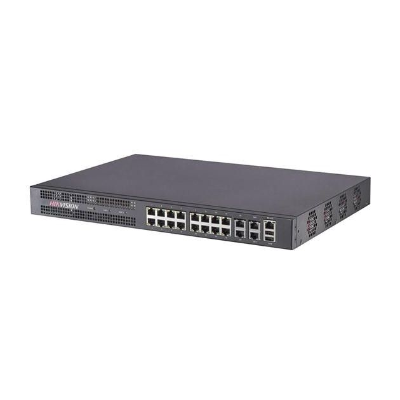

Hikvision 4K Network Decoder, 4x HDMI output, 2x BNC output, up to 72x 720p

Hikvision 4K Network Decoder, 4x HDMI output, 2x BNC output, up to 72x 720p

Designed for high-definition video monitoring systems, the Hikvision DS-6904UDI Decoder is developed based on embedded hardware platform, ensuring high reliability and stability of system running. The DS-6904UDI Decoder is capable 24MP at 30fps: 2-ch, 12MP at 20fps:4-ch, 8MP at 30fps: 8-ch, 5MP at 30fps: 12-ch, 3MP at 30fps: 20-ch, 1080p: 36-ch, 720p: 72-ch simultaneous decoding, and outputting decoded video via BNC or HDMI interfaces, and it also supports multiple video stream formats like H.265+/H.265, H.264+/H.264, Hik264, MPEG4 and MJPEG. The decoded video can be displayed on a video wall or large screen.

Features:

• HDMI (adaptable to DVI-D) and BNC output interfaces
• Up to 4K (3840 x 2160@30Hz) via HDMI output interfaces (only for odd interface).
• H.265+/H.265, H.264+/H.264, Hik264, MPEG4 and MJPEG video compression.
• G.722, G711A, G726, G711U, MPEG2-L2, and AAC audio compression.
• Decoding Capability 24MP at 30fps: 2-ch, 12MP at 20fps:4-ch, 8MP at 30fps: 8-ch, 5MP at 30fps: 12-ch, 3MP at 30fps: 20-ch, 1080p: 36-ch, 720p: 72-ch.
• Supports multi-screen control with PC installed with RSC server.
• Flexible display configuration options
• Provides local HDMI and DVI-I input interfaces.

Download

DS-6904UDI Datasheet

DS-6904UDI User Manual
