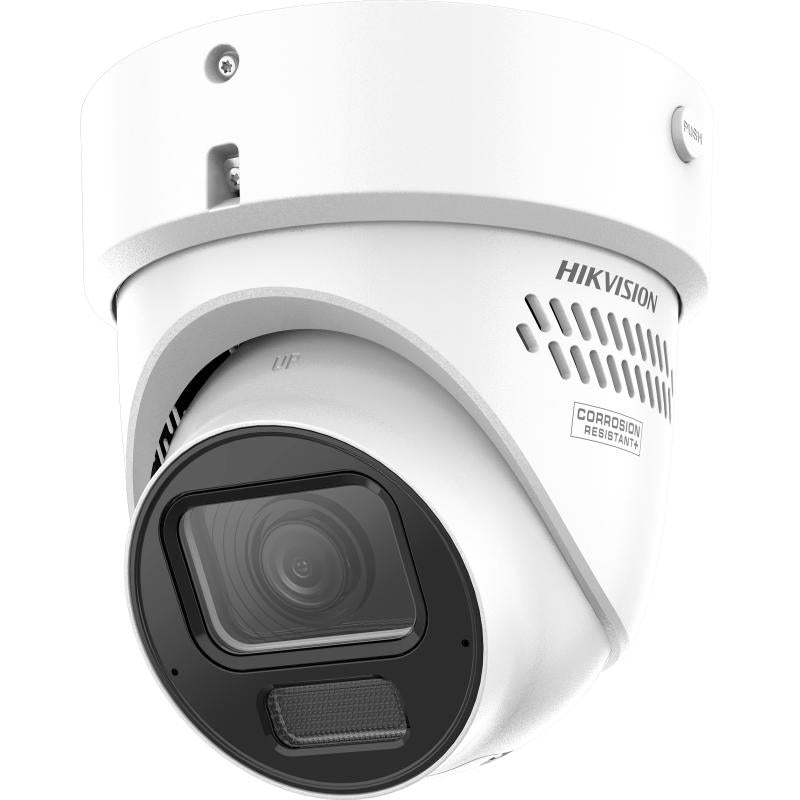

Hikvision DS-2CD3H87G3-LIZSUY/SL 8MP DarkFighter 2.0 Motorised Varifocal Turret Camera
Monitor entrances and outdoor areas in detailed 8MP resolution with the Hikvision DS-2CD3H87G3-LIZSUY/SL. Its 2.7–13.5 mm motorised varifocal lens lets you adjust coverage during installation, while DarkFighter 2.0 and HIK AI-ISP support low-light colour imaging and noise reduction. Smart Hybrid Light provides infrared and white-light illumination up to 40 metres, with a white strobe and audible warning to help deter intruders. Built-in dual microphones and a speaker let you listen and speak through the camera.
Key features
- 8MP video: Capture 3840 × 2160 at up to 25 fps at 50 Hz or 30 fps at 60 Hz.
- Motorised varifocal lens: A 2.7–13.5 mm auto-iris lens with maximum F1.2 aperture provides a horizontal field of view of 112.3°–41.2°.
- DarkFighter 2.0 and HIK AI-ISP: Support low-light colour imaging with noise reduction; minimum colour illumination is 0.001 lux at F1.2 with AGC on, or 0 lux with light.
- Smart Hybrid Light: Infrared and white light each reach up to 40 m, with three supplemental lighting modes.
- Active deterrence: Built-in white flashing light and audible warning support event-triggered responses.
- Built-in two-way audio: Arrayed dual microphones and a speaker support real-time communication, with environmental noise filtering.
- Human and vehicle classification: Deep-learning-based classification supports targeted motion alarms and perimeter protection.
- Perimeter and analytics: Supports line crossing, intrusion, region entrance, region exiting, face capture and people counting.
- Scene-adaptive 130 dB WDR: Helps balance difficult lighting, supported by BLC, HLC, 3D DNR, distortion correction, defog and electronic image stabilisation.
- Efficient recording: H.265, H.264, H.264+ and H.265+ main-stream compression options help manage bandwidth and storage.
- Local and network storage: Supports memory cards up to 512 GB, NAS storage and Auto Network Replenishment.
- External integration: One audio input, one audio output, two alarm inputs and two alarm outputs.
- Metal construction: IP67 water and dust resistance, IK10 vandal resistance and NEMA 4X moderate anti-corrosion protection.
Technical specifications
| Model | DS-2CD3H87G3-LIZSUY/SL |
|---|---|
| Camera design | Motorised varifocal turret network camera |
| Image sensor | 1/1.8-inch progressive scan CMOS |
| Maximum resolution | 3840 × 2160, 8MP |
| Maximum frame rate at 8MP | 25 fps at 50 Hz; 30 fps at 60 Hz |
| Lens | 2.7–13.5 mm motorised varifocal; auto-iris; maximum F1.2 aperture |
| Field of view | Horizontal: 112.3°–41.2°; vertical: 58.1°–23.1°; diagonal: 137.4°–47.3° |
| Minimum illumination | Colour: 0.001 lux at F1.2, AGC on; 0 lux with light |
| Supplemental illumination | IR up to 40 m; white light up to 40 m; 850 nm IR wavelength |
| Warning light | White flashing light |
| Wide dynamic range | 130 dB, scene-adaptive |
| Video compression | Main stream: H.265/H.264/H.264+/H.265+; sub-stream: H.265/H.264/MJPEG; additional streams available under supported settings |
| Ethernet | 1 × RJ45 10/100 Mbps self-adaptive port |
| Interoperability | ONVIF Profiles S, T and G; ISAPI, SDK and ISUP |
| Client software | iVMS-4200, Hik-Connect and Hik-Central |
| Onboard storage | microSD/microSDHC/microSDXC card support, up to 512 GB |
| Network storage | NAS using NFS or SMB/CIFS; Auto Network Replenishment |
| Built-in audio | Arrayed dual microphones and speaker; speaker maximum power consumption 2 W |
| External audio | 1 line input and 1 line output using two-core terminal blocks |
| Alarm interfaces | 2 inputs and 2 outputs; outputs maximum 24 V DC/24 V AC, 1 A |
| DC power input | 12 V DC ±25%, 1.4 A, maximum 16.8 W; two-core terminal block with reverse-polarity protection |
| PoE power input | IEEE 802.3at PoE+, Class 4, maximum 20 W |
| Power output | 12 V DC, maximum 100 mA |
| Construction and protection | Metal base and cover; IP67; IK10; NEMA 4X, classified as moderate anti-corrosion protection |
| Angle adjustment | Pan: 0–360°; tilt: 0–75°; rotation: 0–360° |
| Operating conditions | -30°C to 60°C; humidity up to 95%, non-condensing |
| Dimensions | Ø143.5 × 142.7 mm |
| Camera weight | Approximately 1.265 kg |
| Packaged dimensions and weight | 170 × 170 × 225 mm; approximately 1.53 kg |
Installation and accessories
The datasheet lists optional DS-1273ZJ-140-Y and DS-1273ZJ-140B-Y wall mounts, the DS-1271ZJ-140-Y pendant mount, the DS-1475ZJ-SUS pole mount and the DS-1476ZJ-SUS corner mount. Pole and corner installations require the appropriate accessory combinations shown in the datasheet. Package contents are not specified in the linked document.
Connection note: Connect using wired Ethernet and supply power through compatible IEEE 802.3at PoE+ equipment or the specified 12 V DC terminal-block connection. This model requires PoE+ when powered over Ethernet. Built-in microphones and a speaker provide two-way audio; separate line-level audio interfaces are also available. The motorised lens adjusts the viewing angle and does not make this a motorised pan/tilt camera.
