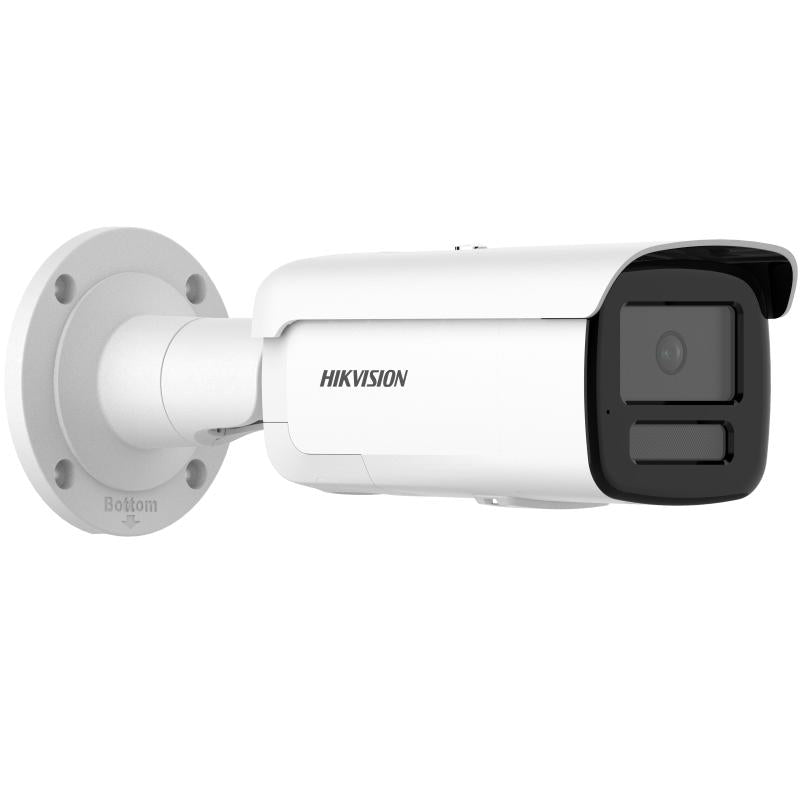

Hikvision DS-2CD2T86G2H-IS2U/SL 8MP AcuSense Strobe and Audio Bullet Camera, 2.8mm
Keep watch over your property in detailed 8MP resolution with the Hikvision DS-2CD2T86G2H-IS2U/SL bullet network camera. Its fixed 2.8 mm F1.0 lens provides a wide 105° horizontal view, while infrared illumination reaches up to 60 metres for monitoring in darkness. AcuSense human and vehicle classification helps focus alerts on relevant activity, with built-in two-way audio and a white strobe light to help you respond.
Key features
- 8MP video: Capture up to 3840 × 2160 resolution at 25 fps at 50 Hz or 24 fps at 60 Hz. At 60 Hz, resolutions up to 3200 × 1800 support 30 fps.
- Wide-angle 2.8 mm lens: A fixed F1.0 lens provides a 105° horizontal field of view, paired with a 1/1.8-inch progressive scan CMOS sensor.
- 60 m infrared night vision: Smart supplemental IR illumination supports monitoring in darkness, with an 850 nm wavelength and an IR cut filter for day/night operation.
- AcuSense classification: Deep-learning-based human and vehicle classification supports more targeted motion and perimeter alerts.
- Perimeter protection: Monitor line crossing, intrusion, region entrance and region exiting, with alarm filtering for people and vehicles.
- Additional detection: Supports face capture, scene change detection, motion detection and video-tampering alarms.
- Two-way audio: Two built-in microphones and a built-in speaker support listening and speaking, with environmental noise filtering.
- White strobe and audible warning: Active deterrence functions help you respond to detected events. This /SL model uses a white flashing light.
- Image enhancement: 120 dB WDR, backlight compensation, highlight compensation, 3D digital noise reduction and defog help manage challenging scenes.
- Audio and alarm interfaces: One line-level audio input, one audio output, one alarm input and one alarm output support external devices.
- Efficient recording: H.265, H.264, H.264+ and H.265+ main-stream compression provide options for managing storage and bandwidth.
- IP67 outdoor protection: Metal front cover, body and bracket, with an operating temperature range of -30°C to 60°C.
- Flexible management and storage: Supports iVMS-4200, Hik-Connect and Hik-Central, onboard memory cards up to 512 GB, and NAS storage with Auto Network Replenishment.
Technical specifications
| Model | DS-2CD2T86G2H-IS2U/SL, 2.8 mm |
|---|---|
| Camera design | Fixed-lens bullet network camera |
| Maximum resolution | 3840 × 2160, 8MP |
| Maximum frame rate at 8MP | 25 fps at 50 Hz; 24 fps at 60 Hz |
| Image sensor | 1/1.8-inch progressive scan CMOS |
| Lens | 2.8 mm fixed focal lens, F1.0 |
| Field of view | 105° horizontal, 56° vertical, 130° diagonal |
| Minimum illumination | Colour: 0.0008 lux at F1.0, AGC on; black and white: 0 lux with IR |
| Night illumination | Infrared, up to 60 m; 850 nm wavelength |
| Warning light | White flashing light on /SL model |
| Wide dynamic range | 120 dB |
| Wired connection | 1 × RJ45 10/100 Mbps self-adaptive Ethernet port |
| Interoperability | ONVIF Profile S/T/G, ISAPI, SDK and ISUP |
| Onboard storage | microSD/microSDHC/microSDXC card support, up to 512 GB |
| Audio | 2 built-in microphones and built-in speaker; 1 line input and 1 line output |
| Alarm interfaces | 1 input and 1 output; output rated up to 24 V DC/24 V AC, 1 A |
| Power supply | 12 V DC ±25%, 1.4 A, maximum 10.5 W, Ø5.5 mm coaxial power plug; or IEEE 802.3at PoE+, Class 4, maximum 17 W |
| Construction and protection | Metal front cover, body and bracket; IP67 water and dust resistance |
| Operating temperature | -30°C to 60°C; humidity up to 95%, non-condensing |
| Angle adjustment | 0–360° pan, 0–90° tilt and 0–360° rotation |
| Dimensions | 286.7 × 93.1 × 91.2 mm |
| Camera weight | Approximately 1.22 kg |
| Packaged dimensions and weight | 386 × 156 × 155 mm; approximately 1.904 kg |
Installation and accessories
The datasheet lists DS-1275ZJ-SUS and DS-1275ZJ-S-SUS vertical pole mounts, the DS-1276ZJ-SUS corner mount, and DS-1260ZJ and DS-1280ZJ-S junction boxes as optional accessories. Package contents are not specified in the linked datasheet.
Connection note: Connect using Ethernet and power the camera through compatible IEEE 802.3at PoE+ equipment or the specified 12 V DC supply. This model has a fixed 2.8 mm lens, not a motorised zoom lens. The /SL model uses a white warning light; red-and-blue warning lights apply to /SRB models.
