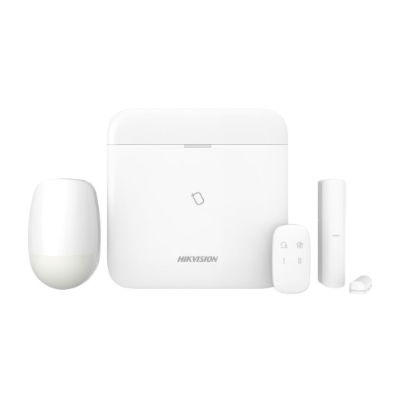

Hikvision Ax Pro Wireless Alarm Kit, 1x PIR, 1x Key Fob, 1x Reed Switch, 3x Mifare Tags

The Hikvision HIK-PWA96-KIT wireless alarm hub kit supports up to 96 devices in a combination of wireless detection devices or wireless outputs and forms an integral part of the Hik-Connect all in one Eco-System. The hub incorporates Wi-Fi, TCP/IP, and GPRS/3G/4G communication methods allowing it to report to control rooms and mobile devices whether through hardwired or GSM-based internet services. The PIR cameras can take a series of snapshots and send them to the Hik-Connect mobile app for video verification of the alarm condition. Hik-Connect now becomes the complete end-user interface by integrating the AX PRO hub, with Hikvision IP cameras and IP Intercoms, to provide an all-in-one security solution. This kit is a great starting point for most installations.

N.B. The AX PRO system is not compatible with the Axiom system

Code: HIK-PWA96-KIT
Brand: Hikvision
Product Details
Hikvision Ax Pro Wireless Alarm Kit, 1x PIR, 1x Key Fob, 1x Reed Switch, 3x Mifare Tags

Key Features

• Wi-Fi, TCP/IP, and GPRS/3G/4G communications
• Wireless protocol Tri-X/Cam-X
• Two-way communication with AES-128 encryption
• Fully remote configurable through the Hik-Connect app
• Stay and away modes
• Push notifications
• Frequency hopping

Specifications

• Wireless zones: up to 96 in conjunction with wireless outputs
• Wireless outputs: up to 96 in conjunction with wireless zones
• Users: 48
• Areas / Partitions: 32
• PIR Cameras: 48
• Readers & Keypads: Up to 8
• Frequency: 433Mhz
• Encryption: AES-128
• Battery type: 4520mAh lithium-ion
• Battery: 12 hours on standby
• Size: 170mm x 170mm x 38.6mm
• Weight: 557.5g

Download

Datasheets

• HIK-PWA96-M Datasheet.pdf
• HIK-PDP15P-EG2 Datasheet.pdf
• HIK-PKF1 Datasheet.pdf
• HIK-PDMC-EG2 Datasheet.pdf
• HIK-PT-M1 Datasheet.pdf
