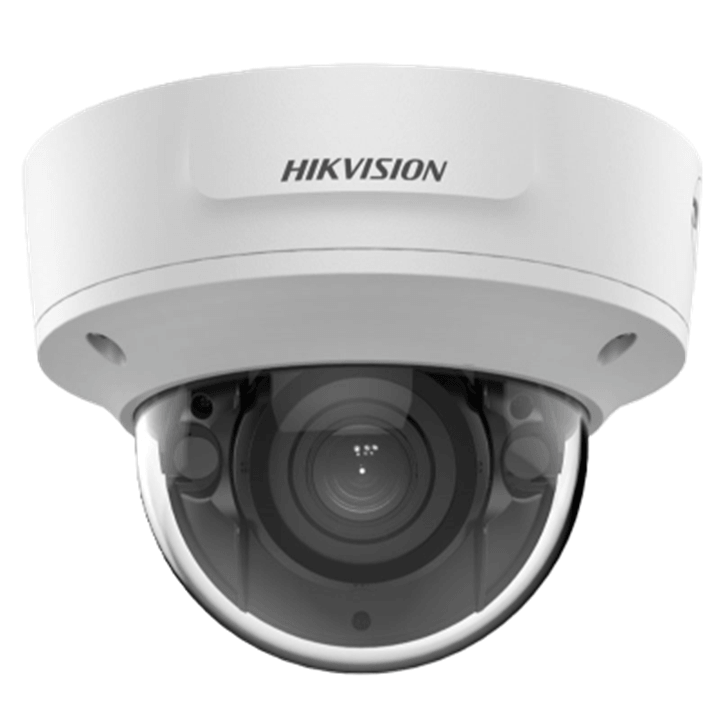

Hikvision DS-2CD2786G2T-IZS 8MP AcuSense Motorised Varifocal Dome Camera
Monitor entrances, driveways and other areas of interest in detailed 8MP resolution with the Hikvision DS-2CD2786G2T-IZS. Its 2.8–12 mm motorised varifocal lens lets you adjust coverage during installation, while powered-by-DarkFighter technology supports low-light imaging. AcuSense human and vehicle classification helps focus alerts on relevant activity, and infrared illumination provides black-and-white monitoring in darkness up to 40 metres.
Key features
- 8MP imaging: Capture footage at up to 3840 × 2160 resolution.
- Motorised varifocal lens: Adjust the 2.8–12 mm lens from wide coverage to a tighter view, with a horizontal field of view of 108°–46°.
- Powered-by-DarkFighter: A 1/1.8-inch progressive scan CMOS sensor and F1.4 aperture support low-light colour imaging down to 0.003 lux with AGC on.
- Infrared night vision: Smart IR illumination up to 40 m supports black-and-white imaging at 0 lux with IR.
- AcuSense classification: Deep-learning-based human and vehicle classification supports motion detection and perimeter protection.
- Perimeter monitoring: Supports line crossing, intrusion, region entrance and region exiting detection.
- Additional detection: Face capture, scene change detection and video-tampering alarms.
- 120 dB true WDR: Helps retain detail against strong backlight, with BLC, HLC and 3D DNR for additional image enhancement.
- Efficient recording: H.265, H.264, H.264+ and H.265+ main-stream compression options help manage bandwidth and storage.
- Audio and alarm interfaces: One line-level audio input, one line output, one alarm input and one alarm output support external equipment.
- Flexible storage: Supports onboard microSD storage up to 512 GB, NAS storage and Auto Network Replenishment.
- Metal housing: IP67 water and dust resistance and IK10 vandal resistance.
- Flexible power: Operates on 12 V DC or IEEE 802.3af PoE, Class 3.
Technical specifications
| Model | DS-2CD2786G2T-IZS |
|---|---|
| Camera design | Motorised varifocal dome network camera |
| Image sensor | 1/1.8-inch progressive scan CMOS |
| Maximum resolution | 3840 × 2160, 8MP |
| Main-stream frame rate | 50 Hz: up to 25 fps at 3840 × 2160. 60 Hz: up to 24 fps at 3840 × 2160, or 30 fps at 3200 × 1800 and lower supported resolutions. |
| Lens | 2.8–12 mm motorised varifocal, F1.4, fixed iris |
| Field of view | Horizontal: 108°–46°; vertical: 58°–26°; diagonal: 127.4°–52° |
| Minimum illumination | Colour: 0.003 lux at F1.4, AGC on; black and white: 0 lux with IR |
| Day/night operation | IR cut filter; day, night, auto and scheduled switching |
| Infrared illumination | Up to 40 m; 850 nm wavelength; smart supplemental light |
| Wide dynamic range | 120 dB true WDR |
| Video compression | Main stream: H.265/H.264/H.264+/H.265+; sub-stream: H.265/H.264/MJPEG; third stream: H.265/H.264 under supported settings |
| Ethernet | 1 × RJ45 10/100 Mbps self-adaptive port |
| Interoperability | Open Network Video Interface Profiles S, G and T; ISAPI and SDK |
| Client software | iVMS-4200, Hik-Connect and Hik-Central |
| Storage | Built-in microSD slot, up to 512 GB; NAS using NFS or SMB/CIFS; Auto Network Replenishment |
| Audio interfaces | 1 line input and 1 line output using two-core terminal blocks; mono audio with environmental noise filtering |
| Alarm interfaces | 1 input and 1 output; output maximum 24 V DC/24 V AC, 1 A |
| DC power | 12 V DC ±25%, 0.88 A, maximum 10.5 W; Ø5.5 mm coaxial power plug |
| PoE power | IEEE 802.3af, Class 3, maximum 12.5 W |
| Construction and protection | Metal; IP67 water and dust resistance; IK10 vandal resistance |
| Angle adjustment | Pan: 0–355°; tilt: 0–90°; rotation: 0–355° |
| Operating conditions | -30°C to 60°C; humidity up to 95%, non-condensing |
| Dimensions | Ø153.3 × 111.6 mm |
| Camera weight | Approximately 860 g |
| Packaged dimensions and weight | 244 × 174 × 173 mm; approximately 1.44 kg |
Installation and accessories
The datasheet lists the following optional accessories: DS-1280ZJ-DM55 junction box, DS-1473ZJ-155 wall mount, DS-1475ZJ-SUS vertical pole mount, DS-1476ZJ-SUS corner mount and DS-1471ZJ-155 pendant mount. Check the required mounting combination for your installation. Package contents are not specified in the linked datasheet.
Connection note: This camera uses wired Ethernet. Supply power through compatible IEEE 802.3af PoE equipment or the specified 12 V DC supply. The audio connections are line-level interfaces for external equipment; the datasheet does not specify a built-in microphone or speaker. Night illumination is infrared, providing black-and-white images in darkness rather than white-light colour illumination.
