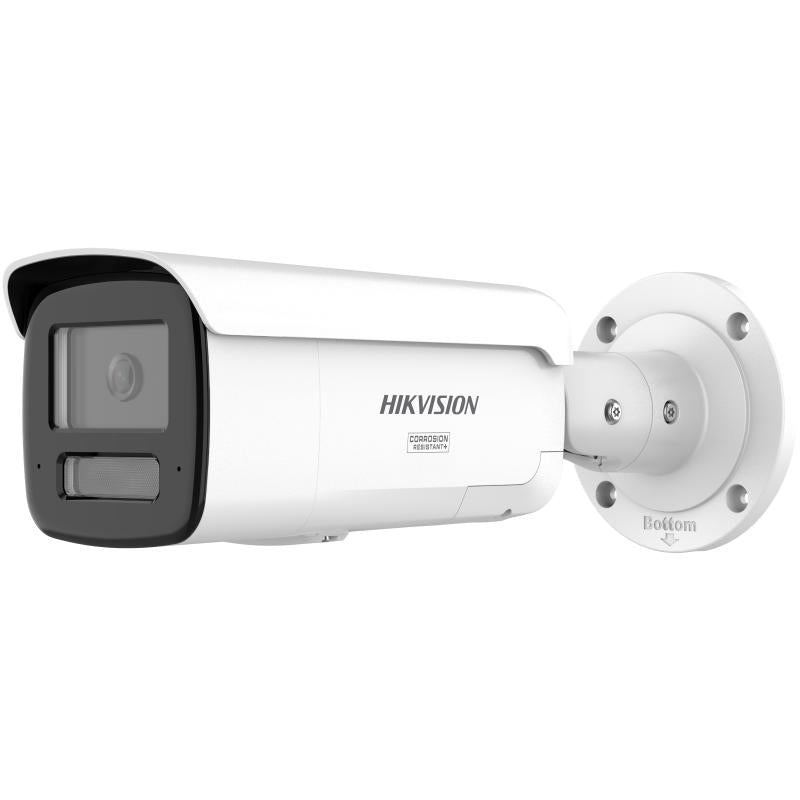

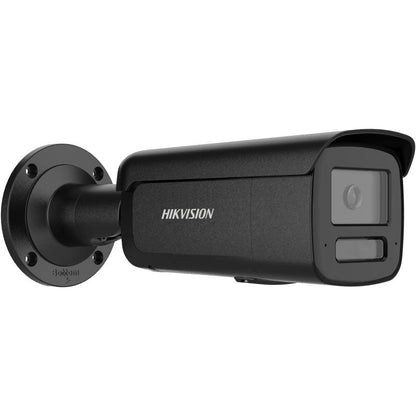

Hikvision DS-2CD2T87G3-LIS2UY/SL 8MP ColorVu Smart Hybrid Light Bullet Camera
Monitor your property in detailed 8MP resolution with the Hikvision DS-2CD2T87G3-LIS2UY/SL fixed bullet network camera. ColorVu combines an F1.0 lens and a 1/1.8-inch sensor for low-light colour imaging, while HikAI-ISP helps reduce image noise. Smart Hybrid Light provides infrared and white-light illumination, with built-in two-way audio, a white strobe and audible warnings to help you respond to events.
Lens options: Choose 2.8 mm for a wider 108.8° horizontal view or 4 mm for a narrower 93.3° horizontal view. Select the lens and colour option before ordering.
Key features
- 8MP video: Capture up to 3840 × 2160 resolution at 25 fps at 50 Hz or 30 fps at 60 Hz.
- ColorVu low-light imaging: An F1.0 lens and 1/1.8-inch progressive scan CMOS sensor support colour monitoring in low light. Minimum colour illumination is 0.0005 lux at F1.0 with AGC on, or 0 lux with light.
- HikAI-ISP processing: Helps reduce image noise for clearer footage.
- Smart Hybrid Light: Integrates infrared and white light with three supplemental lighting modes and a rated illumination range of up to 60 metres.
- Human and vehicle classification: Deep-learning-based classification supports more targeted motion and perimeter alerts.
- Perimeter protection: Monitor line crossing, intrusion, region entrance and region exiting, with alarm filtering for people and vehicles.
- Additional detection: Supports face capture, scene change detection, motion detection and video-tampering alarms.
- Two-way audio: A built-in arrayed dual-microphone and speaker support listening and speaking, with environmental noise filtering.
- White strobe and audible warning: Active deterrence functions help you respond to detected events. The /SL model uses a white flashing light.
- Image enhancement: Scene-adaptive 130 dB WDR, backlight compensation, highlight compensation, 3D digital noise reduction, distortion correction, defog and electronic image stabilisation help manage challenging scenes.
- Audio and alarm integration: One line-level audio input, one audio output, two alarm inputs and two alarm outputs support external devices.
- Outdoor and anti-corrosion protection: Metal construction with IP67 water and dust resistance and NEMA 4X anti-corrosion protection. The datasheet classifies the model as offering moderate anti-corrosion protection.
- Efficient recording: H.265, H.264, H.264+ and H.265+ main-stream compression provide options for managing storage and bandwidth.
- Flexible management and storage: Supports iVMS-4200, Hik-Connect and Hik-Central, onboard memory cards up to 512 GB, and NAS storage with Auto Network Replenishment.
Technical specifications
| Model | DS-2CD2T87G3-LIS2UY/SL |
|---|---|
| Camera design | Fixed-lens bullet network camera |
| Maximum resolution | 3840 × 2160, 8MP |
| Maximum frame rate at 8MP | 25 fps at 50 Hz; 30 fps at 60 Hz |
| Image sensor | 1/1.8-inch progressive scan CMOS |
| Lens options | 2.8 mm or 4 mm fixed focal lens, F1.0 |
| 2.8 mm field of view | 108.8° horizontal, 56.4° vertical, 134.3° diagonal |
| 4 mm field of view | 93.3° horizontal, 47.2° vertical, 114.2° diagonal |
| Minimum illumination | Colour: 0.0005 lux at F1.0, AGC on; 0 lux with light |
| Supplemental illumination | IR and white light, up to 60 m; 850 nm IR wavelength |
| Warning light | White flashing light on /SL model |
| Wide dynamic range | 130 dB, scene-adaptive WDR |
| Wired connection | 1 × RJ45 10/100 Mbps self-adaptive Ethernet port |
| Interoperability | ONVIF Profile S/T/G, ISAPI, SDK and ISUP |
| Onboard storage | microSD/microSDHC/microSDXC card support, up to 512 GB |
| Audio | Built-in arrayed dual-microphone and speaker; 1 line input and 1 line output |
| Alarm interfaces | 2 inputs and 2 outputs; outputs rated up to 24 V DC/24 V AC, 1 A |
| Power supply | 12 V DC ±25%, 1.41 A, maximum 17 W, Ø5.5 mm coaxial power plug; or IEEE 802.3at PoE+, Class 4, maximum 18 W |
| Construction and protection | Metal front cover, body and bracket; IP67; NEMA 4X anti-corrosion protection |
| Operating temperature | -30°C to 60°C; humidity up to 95%, non-condensing |
| Angle adjustment | 0–360° pan, 0–90° tilt and 0–360° rotation |
| Dimensions | 286.7 × 93.3 × 91.2 mm |
| Camera weight | Approximately 1.25 kg |
| Packaged dimensions and weight | 386 × 156 × 155 mm; approximately 1.8 kg |
Installation and accessories
The datasheet lists DS-1275ZJ-SUS and DS-1275ZJ-S-SUS pole mounts, the DS-1276ZJ-SUS corner mount and the DS-1260ZJ junction box as optional accessories. Package contents are not specified in the linked datasheet.
Connection note: Connect using Ethernet and power the camera through compatible IEEE 802.3at PoE+ equipment or the specified 12 V DC supply. This model uses a fixed lens, not a motorised zoom lens. The /SL model has a white warning light; red-and-blue warning lights apply to /SRB models.
