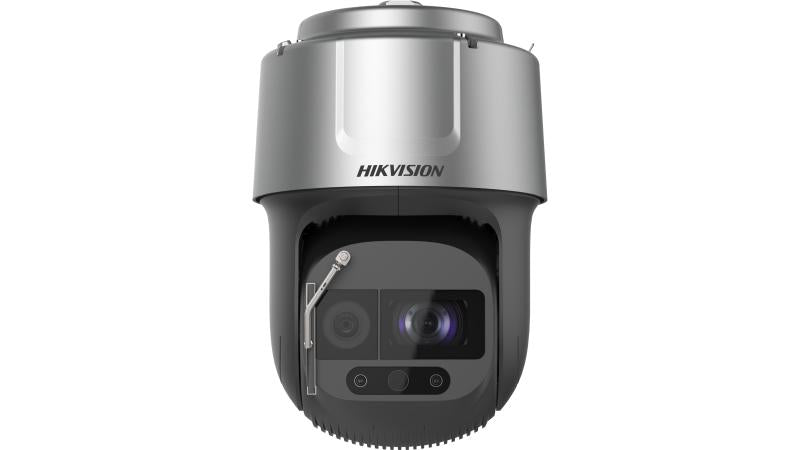

Hikvision DS-2DF9C848LXG-LW 8MP 48× DarkFighterX Laser Network PTZ Camera
Monitor large outdoor sites with the Hikvision DS-2DF9C848LXG-LW network speed dome. Its DarkFighterX dual-sensor design processes colour and brightness independently to produce one full-colour image, with resolution up to 3840 × 2160. A 48× optical zoom lens brings distant areas into view, while continuous 360° pan, automatic tracking and laser illumination up to 800 metres support wide-area monitoring of locations such as roads, railways, ports and large venues.
*Special Order Item*
Key features
- 8MP DarkFighterX imaging: Dual-sensor design with a 1/1.2-inch progressive scan CMOS specification, providing full-colour image output.
- 48× optical zoom: A 6.6–316.8 mm lens with maximum F1.6 aperture, plus 16× digital zoom.
- Low-light sensitivity: Colour down to 0.0005 lux and black and white down to 0.0001 lux at F1.6 with AGC on; 0 lux with light.
- Long-range illumination: Smart supplemental laser illumination up to 800 m. This is the specified illumination range, not a guaranteed identification distance.
- Rapid focus: Auto, semi-auto, manual and rapid focus modes support changing monitoring requirements.
- Wide-area PTZ coverage: 360° pan and -25° to 90° tilt with auto flip, 300 presets, eight patrols and four pattern scans.
- Intelligent tracking: Manual tracking, auto-tracking 2.0 and deep-learning-based target classification for tracking and perimeter protection.
- 140 dB WDR: Helps manage difficult lighting, with 3D DNR, HLC, BLC, optical defog and gyroscope-assisted electronic image stabilisation.
- Smart events: Supports intrusion, line crossing, region entrance/exit, unattended baggage, object removal and audio exception detection.
- Advanced analytics: Face capture supports detection of up to 30 faces simultaneously. Road-traffic functions support vehicle detection, licence plate number, vehicle model and colour recognition.
- Efficient recording: H.265+, H.265, H.264+ and H.264 main-stream compression options.
- Rain-sensing wiper: Automatic wiper control helps maintain visibility during rain.
- External integration: Seven alarm inputs, two alarm outputs, line-level audio input/output, BNC video output and RS-485.
- Outdoor protection: IP67 housing with documented lightning, surge and voltage-transient protection.
Technical specifications
| Model | DS-2DF9C848LXG-LW |
|---|---|
| Camera design | DarkFighterX dual-sensor network PTZ speed dome |
| Image sensor specification | 1/1.2-inch progressive scan CMOS; dual-sensor design |
| Maximum resolution | 3840 × 2160, 8MP |
| Main-stream frame rate | 50 Hz: up to 25 fps at 3840 × 2160; 60 Hz: up to 24 fps at 3840 × 2160 |
| Optical and digital zoom | 48× optical; 16× digital |
| Focal length | 6.6–316.8 mm |
| Aperture | Maximum F1.6 |
| Field of view, wide to tele | Horizontal: 61.0°–2.1°; vertical: 35.9°–1.2°; diagonal: 68.5°–2.4° |
| Zoom speed | Approximately 7.4 seconds |
| Minimum illumination | Colour: 0.0005 lux; black and white: 0.0001 lux, both at F1.6 with AGC on; 0 lux with light |
| Supplemental illumination | Laser distance up to 800 m; smart supplemental light |
| Wide dynamic range | 140 dB |
| Pan/tilt range | Pan: 360°; tilt: -25° to 90°, with auto flip |
| Pan speed | Configurable 0.1–210°/s; preset speed 280°/s |
| Tilt speed | Configurable 0.1–150°/s; preset speed 250°/s |
| Presets and scans | 300 presets; 8 patrols with up to 32 presets each; 4 pattern scans, over 10 minutes recording per scan |
| Ethernet | 1 × RJ45 10/100 Mbps self-adaptive port |
| Interoperability | ONVIF Profiles S, G and T; ISAPI; Hikvision SDK |
| Onboard storage | microSD/microSDHC/microSDXC card support, up to 256 GB |
| Audio interfaces | 1 line input and 1 line output for external audio equipment |
| Alarm interfaces | 7 inputs and 2 outputs |
| Additional interfaces | BNC analogue video output, PAL/NTSC; half-duplex RS-485 supporting HIKVISION, Pelco-P and Pelco-D |
| Power | 36 V DC; maximum 90 W, including up to 18 W for the laser |
| Wiper | Rain-sensing automatic control |
| Material and protection | ADC12; IP67; lightning, surge and voltage-transient protection rated ±6 kV line-to-ground and ±3 kV line-to-line |
| Operating conditions | -40°C to 70°C; humidity up to 95% |
| Dimensions | Ø293 × 422 mm |
| Weight | Approximately 13 kg |
Installation and accessories
The datasheet lists optional DS-1668ZJ(20)-P and DS-1668ZJ-P pendant mounts, the DS-1619ZJ-HP2 gooseneck mount, DS-1603ZJ-P wall mount and DS-1603ZJ-Pole-P vertical pole mount. Select a mounting arrangement suitable for the camera's approximately 13 kg weight and installation conditions. Package contents are not specified in the linked datasheet.
Connection note: This camera uses wired Ethernet and the datasheet specifies 36 V DC power with a maximum consumption of 90 W. It does not list PoE as a power option, so do not assume a standard PoE or PoE+ switch can power it. Audio input and output are line-level connections for external equipment; the datasheet does not specify built-in microphones or a speaker. Confirm power-supply and mounting arrangements before installation.
