Hikvision DS-2CD2T87G2P-LSU-SL, 8MP Hybrid ColorVu Dual Lens Strobe Audio Bullet, 4mm, IR 40m, Mic

Hikvision DS-2CD2T87G2P-LSU-SL, 8MP Hybrid ColorVu Dual Lens Strobe Audio Bullet, 4mm, IR 40m, Mic

Availbility: In Stock
Product Code: DS-2CD2T87G2P-LSU/SL-4
Regular price $685.00
Regular price $1,095.00 Sale price $685.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity
View full details
Free Shipping on
Order Over $300*
Secure Online Payment
with Tax Invoice
Manufacturers
Return & Warranty
Authorised Australian
Partner With Tech Support

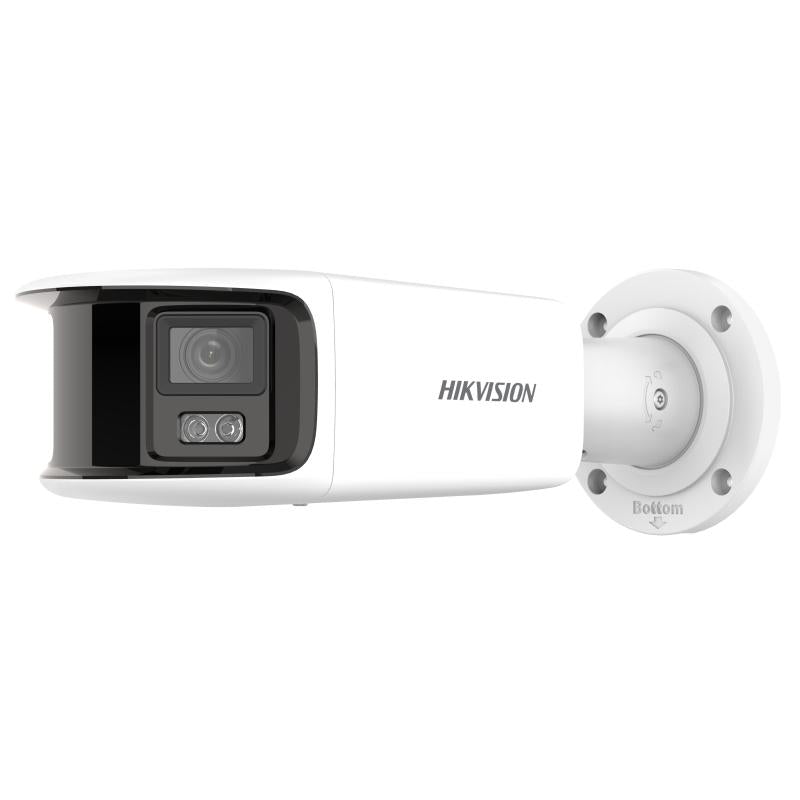

Hikvision DS-2CD2T87G2P-LSU/SL-4 8MP ColorVu Dual-Lens Panoramic Bullet Camera

Cover a wide frontage, driveway or yard in one panoramic image with the Hikvision DS-2CD2T87G2P-LSU/SL-4. Two 4 mm lenses and two 1/1.8-inch sensors combine to deliver a 180° horizontal view at 5120 × 1440 resolution. ColorVu technology and F1.0 lenses support low-light colour imaging, with white-light illumination up to 40 metres. Human and vehicle classification helps focus alerts, while a flashing white light, built-in microphone and speaker support audible warnings and communication.

Key features

  • 8MP panoramic imaging: Dual lenses present the covered scene in one 5120 × 1440 image.

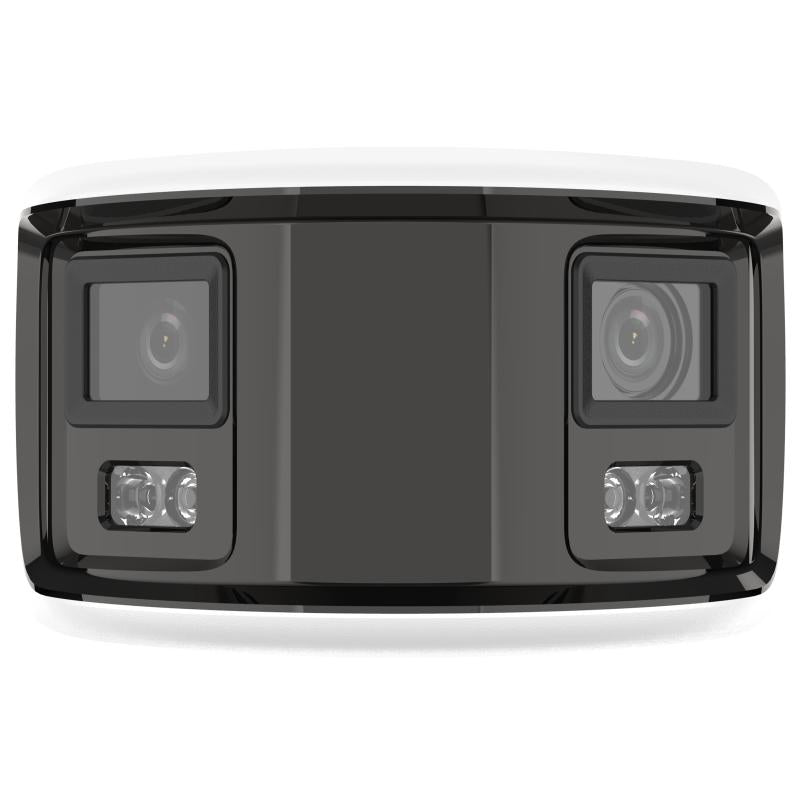

  • 180° coverage: Dual fixed 4 mm lenses provide a 180° horizontal and 44° vertical field of view.
  • ColorVu low-light imaging: Two 1/1.8-inch progressive scan CMOS sensors and F1.0 lenses support colour imaging down to 0.0005 lux with AGC on, or 0 lux with light.
  • White-light illumination: Smart supplemental white light reaches up to 40 m. The linked datasheet specifies white light, not infrared illumination.
  • Active deterrence: Flashing white light and an audible alarm support event-triggered warnings.
  • Built-in audio: Microphone and speaker, plus separate line-level audio input and output.
  • Human and vehicle classification: Deep-learning-based classification supports targeted motion alarms and perimeter protection.
  • Perimeter monitoring: Supports line crossing, intrusion, region entrance and region exiting detection, plus scene change detection.
  • 130 dB WDR: Helps retain detail in backlit scenes, with BLC, HLC and 3D DNR for image enhancement.
  • Efficient recording: H.265+, H.265, H.264+ and H.264 main-stream compression options.
  • Flexible storage: Supports memory cards up to 512 GB, NAS, NVR recording and Auto Network Replenishment.
  • Outdoor construction: Metal front cover, body and bracket with IP67 water and dust resistance.
  • Power options: 12 V DC or IEEE 802.3af PoE, Class 3.

Technical specifications

Listing model DS-2CD2T87G2P-LSU/SL-4
Datasheet model DS-2CD2T87G2P-LSU/SL, 4 mm (C)
Camera design Dual-lens panoramic fixed bullet network camera
Image sensors 2 × 1/1.8-inch progressive scan CMOS
Maximum resolution 5120 × 1440
Lens Dual fixed 4 mm lenses, F1.0, fixed iris
Field of view 180° horizontal; 44° vertical
Frame rate with WDR on 50 Hz: up to 12.5 fps at 5120 × 1440; 60 Hz: up to 15 fps at 5120 × 1440
Frame rate with WDR off Up to 20 fps at 5120 × 1440 at 50 Hz or 60 Hz
Minimum illumination Colour: 0.0005 lux at F1.0, AGC on; 0 lux with light
Supplemental illumination White light, up to 40 m
Wide dynamic range 130 dB
Video compression Main stream: H.265+/H.265/H.264+/H.264; sub-stream: H.265/H.264/MJPEG
Ethernet 1 × RJ45 10/100 Mbps self-adaptive port
Interoperability Open Network Video Interface Profiles S, G and T; ISAPI, SDK and ISUP
Client software iVMS-4200, Hik-Connect and Hik-Central
Onboard storage microSD/microSDHC/microSDXC card support, up to 512 GB
Network storage NAS using NFS or SMB/CIFS, NVR and Auto Network Replenishment
Built-in audio Microphone and speaker; speaker maximum power consumption 1 W; environmental noise filtering
External audio 1 line input and 1 line output using terminal blocks
Alarm interfaces 1 input and 1 output; output maximum 24 V DC, 1 A
DC power 12 V DC ±25%, 0.88 A, maximum 10.5 W; Ø5.5 mm coaxial power plug
PoE power IEEE 802.3af, Class 3, maximum 12.5 W
Construction and protection Metal front cover, body and bracket; IP67. No specific anti-corrosion protection, as classified in the datasheet.
Angle adjustment Pan: 0–355°; tilt: 0–90°; rotation: 0–360°
Operating conditions -30°C to 60°C; humidity up to 95%, non-condensing
Dimensions 118.6 × 105.1 × 305.4 mm
Camera weight Approximately 1.42 kg
Packaged dimensions and weight 405 × 190 × 180 mm; approximately 2.228 kg

Installation and accessories

The datasheet lists optional DS-1275ZJ-SUS and DS-1275ZJ-S-SUS vertical pole mounts, the DS-1276ZJ-SUS corner mount, and DS-1260ZJ and DS-1280ZJ-S junction boxes. Select the required mounting combination and matching accessory colour for the camera. Package contents are not specified in the linked datasheet.

Connection note: This camera uses wired Ethernet and can be powered through compatible IEEE 802.3af PoE equipment or the specified 12 V DC supply. Its dual fixed lenses provide a panoramic view rather than motorised pan/tilt movement. Maximum frame rate depends on whether WDR is enabled. Night illumination uses white light, not IR, according to the linked datasheet.
