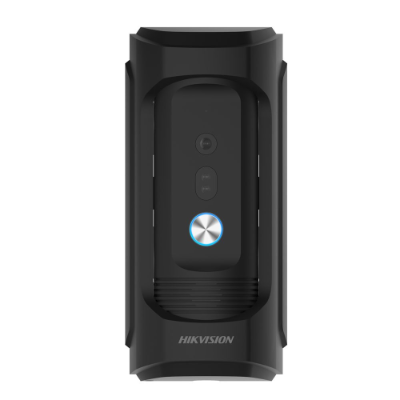

Hikvision KB8113-IME1, 2nd Gen IP Intercom Anti-Vandal Door Station, 1 Button, PoE/12VDC, IP65, IK09

Hikvision 2nd Gen IP Intercom Anti-Vandal Door Station, 1 Button, PoE/12VDC, IP65, IK09

Hikvision's HIK-KB8113-IME1 is the stainless steel version of the single button modular door station which is specifically designed for the IP range, therefore making it great for retrofitting existing sites.

The anti-vandal version is made from zinc alloy material that can be mounted in 12 different positions in 7.5 degree increments, covering a range of 90 degrees. Being able to withstand harsher than normal conditions, such as weathered environments or physical tampering, it makes for the ideal intercom for high risk circumstances.

Features:

• Wide angle lens
• High definition camera
• Wide Dynamic Range
• Web based interface
• Standard PoE
• Infrared LED illumination
• Motion detection
• Noise suppression and echo cancellation
• Single button
• Anti-vandal protection

Specifications:

• Camera: 2MP HD
• Video codec: H.264
• Resolution: 1920 x 1080 (main), 720 x 580 (sub)
• Field of view: 88 degrees (H), 45 degrees (V)
• Stream support: Hikvision protocol, RTSP & ONVIF
• Output: 1x 2A relay
• Protection rating: IP65, IK09
• Power: 48V PoE or 12V DC
• Dimensions: 161mm x 74mm x 54mm

Downloads:

Datasheet of HIK-KB8113-IME1

User Manual of HIK-KB8113-IME1

Quick Start Guide of HIK-KB8113-IME1
