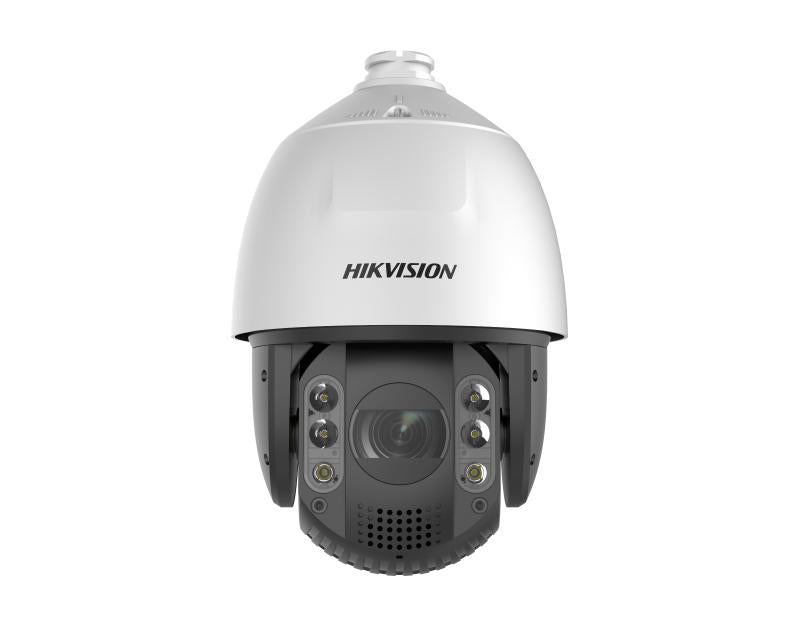

Hikvision DS-2DE7A425IW-AEB 4MP AcuSense PTZ Camera with 25× Optical Zoom and 200 m IR
Monitor larger premises and zoom in on activity with the Hikvision DS-2DE7A425IW-AEB. This 4MP network speed dome combines a 4.8–120 mm, 25× optical zoom lens with motorised pan and tilt, powered-by-DarkFighter low-light imaging and infrared illumination up to 200 metres. AcuSense human and vehicle classification helps focus perimeter alarms on relevant targets, while automatic tracking, a built-in speaker and a white flashing warning light support active monitoring.
Key features
- 4MP video: Records 2560 × 1440 at up to 25 fps at 50 Hz or 30 fps at 60 Hz.
- 25× optical zoom: 4.8–120 mm lens with maximum F1.6 aperture; 16× digital zoom is also available.
- 200 m IR illumination: Supports long-range night monitoring with 0 lux operation when IR is active.
- Powered-by-DarkFighter: Minimum colour illumination of 0.005 lux and black-and-white illumination of 0.001 lux at F1.6, AGC on.
- AcuSense perimeter protection: Human and vehicle classification for line crossing, intrusion, region entrance and region exiting alarms.
- Smart tracking: Supports manual tracking and auto-tracking.
- Active deterrence: Event-triggered white flashing light and audible warning through the built-in speaker.
- Face capture: Detects up to five faces simultaneously, with face grading and best-picture selection.
- Motorised coverage: 360° pan and -15–90° tilt with auto flip, 300 presets, eight patrols and four pattern scans.
- 120 dB WDR: Balances strong backlighting, with electronic image stabilisation, BLC, HLC, 3D DNR and digital defog.
- Efficient recording: Three streams and H.265+/H.265/H.264+/H.264 main-stream compression.
- Flexible storage: Memory cards up to 256 GB, NAS storage and Auto Network Replenishment.
- Outdoor protection: IP66 and IK10 impact resistance excluding the glass window, plus TVS 6000 V lightning, surge and voltage-transient protection.
Technical specifications
| Model covered by linked datasheet | DS-2DE7A425IW-AEB(T5) |
|---|---|
| Image sensor | 1/2.8-inch progressive scan CMOS |
| Maximum resolution | 2560 × 1440, 4MP |
| Main-stream frame rate | Up to 25 fps at 50 Hz or 30 fps at 60 Hz |
| Lens and zoom | 4.8–120 mm; 25× optical, 16× digital; maximum F1.6 aperture |
| Field of view | Horizontal: 50.8°–2.6°; vertical: 29.4°–1.5°; diagonal: 57.4°–3° |
| Focus | Auto, semi-auto and manual |
| Minimum illumination | Colour: 0.005 lux at F1.6, AGC on; black and white: 0.001 lux at F1.6, AGC on; 0 lux with IR |
| Day/night | IR cut filter |
| IR range | Up to 200 m |
| Pan / tilt range | Pan: 360°; tilt: -15–90°, with auto flip |
| Pan speed | Configurable 0.1–160°/s; preset speed 240°/s |
| Tilt speed | Configurable 0.1–120°/s; preset speed 200°/s |
| Presets and scans | 300 presets; 8 patrols with up to 32 presets each; 4 pattern scans |
| PTZ functions | 3D positioning, proportional pan, preset freezing, park actions, scheduled tasks and power-off memory |
| Tracking | Manual tracking and auto-tracking |
| Wide dynamic range | 120 dB |
| Video compression | Main stream: H.265+/H.265/H.264+/H.264; sub-stream and third stream: H.265/H.264/MJPEG |
| Video bit rate | 32 to 16,384 Kbps |
| Privacy masks | 24 programmable polygon masks with configurable colour or mosaic |
| Ethernet | 1 × RJ45 10/100 Mbps self-adaptive port |
| Interoperability | ONVIF Profiles S, G and T; ISAPI, SDK and ISUP |
| Client software | iVMS-4200, HikCentral Pro and Hik-Connect |
| Onboard storage | microSD/SDHC/SDXC support, up to 256 GB |
| Network storage | NAS using NFS or SMB/CIFS; Auto Network Replenishment |
| Audio | Built-in speaker with stated effective distance up to 30 m; 1 external line input and 1 line output |
| Warning light | White flashing light |
| Alarm interfaces | 2 inputs and 1 output |
| Power | 24 V AC or Hi-PoE; maximum 42 W, including up to 18 W for IR and 10 W for the heater |
| Housing | ADC12 |
| Protection | IP66; IK10 excluding glass window; TVS 6000 V lightning, surge and voltage-transient protection |
| Anti-corrosion protection | No specific anti-corrosion protection stated |
| Operating conditions | -30°C to 65°C; humidity up to 90%, non-condensing |
| Demisting | Supported |
| Dimensions and weight | Ø220 × 363.3 mm; approximately 5 kg |
Package contents and installation
The linked T5 datasheet lists a DS-1602ZJ mount as included; a complete box-contents list is not provided. Optional accessories include DS-1604ZJ-series mounts and boxes, DS-1660ZJ, DS-1619ZJ and DS-1661ZJ/DS-1662ZJ/DS-1663ZJ/DS-1667ZJ accessories. The DS-1673ZJ must be used with the DS-1661ZJ or DS-1662ZJ. Confirm the appropriate mounting combination for your site.
Connection note: This is a wired network PTZ camera requiring the specified 24 V AC supply or compatible Hi-PoE equipment. Do not assume standard PoE or PoE+ is sufficient. A speaker is built in, while an external line input is provided for audio capture; a built-in microphone is not specified in the linked datasheet. Specifications above are based on the DS-2DE7A425IW-AEB(T5) document.
