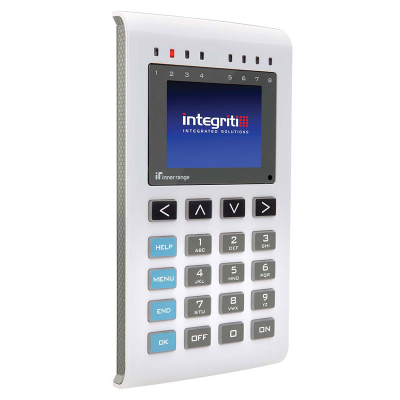

Integriti PrismaX Colour LCD Keypad

Integriti PrismaX Colour LCD Keypad

Availbility: In Stock
Product Code: IR-996400
Please login to see the price.
Free Shipping on
Order Over $300*
Secure Online Payment
with Tax Invoice
Manufacturers
Return & Warranty
Authorised Australian
Partner With Tech Support
View full details

Integriti PrismaX Colour LCD Keypad

Features:

  • Elegant slimline surface mount design
  • Full colour LCD backlit screen
  • Large - easy to read text
  • Four arrow keys provide quick and convenient access to options in the graphic interface menu
  • Tamper monitored housing
  • Light sensitive auto-dimming brightness for LCD, Keypad and LEDs
  • Backlit rubberised keypad provides a user-friendly tactile feel
  • Local temperature display
  • 8 LED indicators for Area status display
  • Instant help text available anytime, at the press of a key
  • Programmable panic key and duress option
  • Compatible with Integriti Systems only



Specifications:

  • Housing Dimensions: 152h x 90w x 18d mm
  • Installation Environment: 0 Degrees - 50Degrees C @ 15% to 85% relative humidity (non-condensing)
  • Input Voltage: 11V – 14V DC
  • Operational Current: Auto current limiting typically less than 100mA @12V (270mA Peak)



Download

Datasheet of IR-996400
