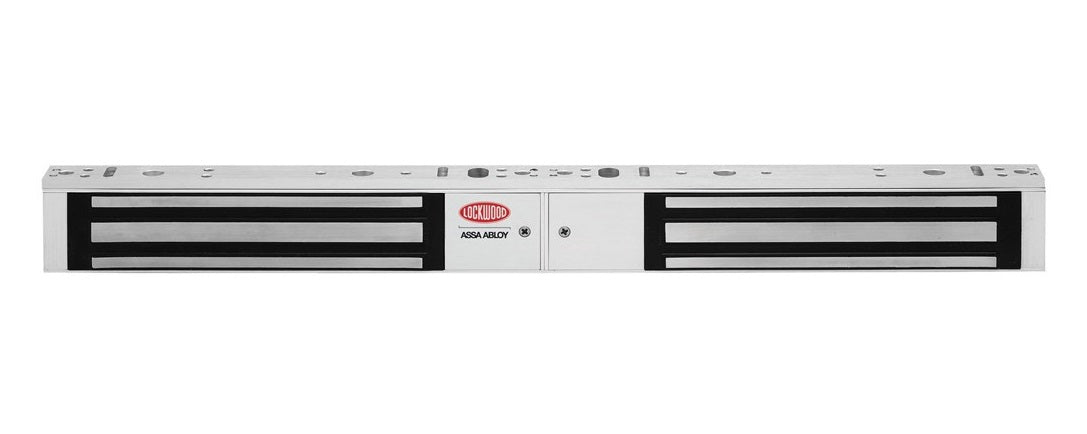

Lockwood EMZ4-DN Mini Mag, 560kg, Double, Non Monitored, PTL, Surface Mount, 12/24V DC

The Double Series Electromagnetic Locks operate with holding forces from 500Kg up to 1160Kg. Covering a range of applications, the Z2, Z4 and Z8 electromagnets are ideal for applications from cupboard doors through to high-use commercial swing doors. With fixing options including wood, aluminium and steel constructions, as well as glass door applications, the range caters to most electromagnetic needs.

Features:

• 500 - 560Kg Holding Force
• Self alignment: armature plate pivots to accommodate door drop
• Silent operation: no humming or buzzing
• 476 x 48 x 27mm
• 12V / 24V DC
• 900mA @ 12V DC, 450mA @ 24V DC

Downloads

Download Datasheets:

• PD-770x00-100 Datasheet

• PD-770300-1xx Z4 Double Assembly Guide
