LOX Electro Magnetic Lock, 630kg, Monitored, Weather, 12/24V DC

LOX Electro Magnetic Lock, 630kg, Monitored, Weather, 12/24V DC

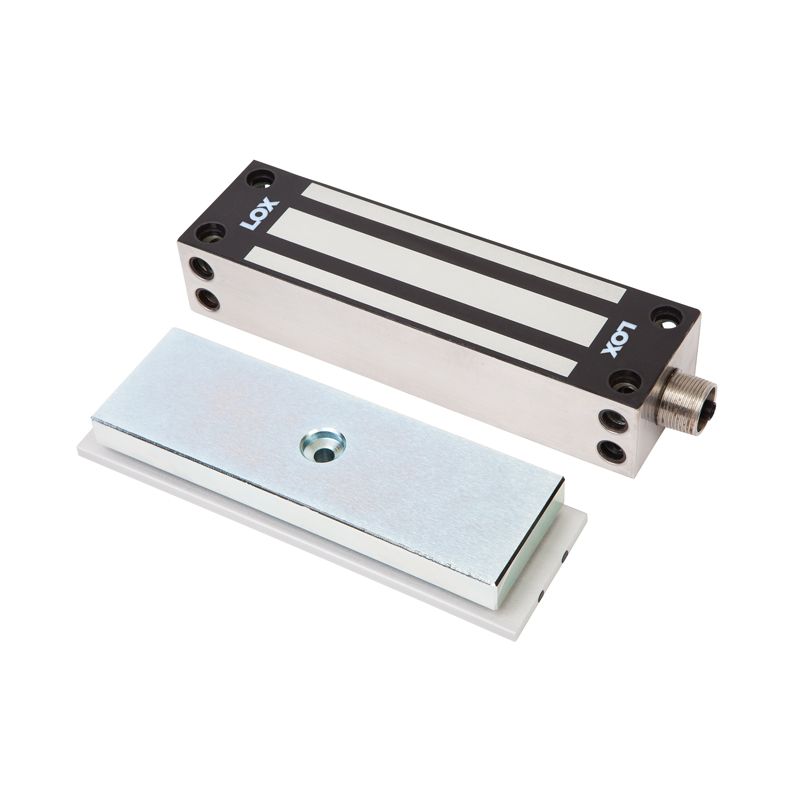

The LOX-EM5000 is an electromagnetic lock that has been designed with a fully enclosed stainless-steel housing. It is a very reliable solution for true external applications exposed to wind and weather. This lock is IP67 rated and is made to work in the harshest environments around Australia such as surf-lifesaving clubhouses and the like. It has a high holding force of up to 630kg, a dual fixing arrangement (front and header mount), a built-in varistor surge protection and accepts dual voltage of 12VDC and 24VDC. The LOX-EM5000 also has a lock status (LSS) monitoring feature by hall- effect and comes with a lifetime warranty. An anti-tamper mounting plate is also included to prevent hostile attacks on the dome-nut-fixing bolt.

Features:

• Lock status monitoring sensor (LSS)
• Stainless 304 steel body housing
• Weather resistant IP67
• Lifetime warranty
• Anti-tamper mounting plate
• No residual magnetism

Specifications:

• Holding strength: 630kg
• Voltage/current: dual voltage 12/24VDC 12VDC
• Operational temperature range: -20 to 60 degrees Celsius

Downloads

Download Datasheets:

• LOX-EM5000 Datasheet
