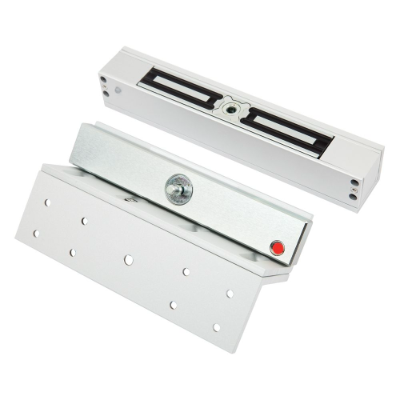

LOX Mechanical Magnetic Lock, L&Z Inward Opening

LOX Mechanical Magnetic Lock, L&Z Inward Opening

The LOX Locking LOX-MML2400LZ is a clever combination of magnetic and mechanical locking components which is fully monitored and designed for inward opening doors. Delivering a holding force of up to 1000kg, whilst being 50 percent smaller than a standard 600kg electro magnetic lock.

Features:

• 50 percent smaller than traditional 600kg holding force magnets
• Holding force of up to 1000kg
• Unlocks under side load of up to 70kg
• Dual-voltage 12/24VDC reduced power consumption 24VDC/175mA
• 5 year warranty (1 year warranty for electronic components)
• 4 hour fire rated
• Full monitoring lock status sensor (LSS) and door status sensor (DSS)
• Early warning security alarm (EW)
• Built-in hall effect sensor for monitoring the lock/unlock status of the locking device (LSS - lock status sensor)
• Built-in reed switch contact for monitoring the open/closed status of the door (DSS - door status sensor)

Specifications:

• Single mechanical magnetic locking device for inward opening doors
• Small LED light indicates locked or unlocked status
• Operating temperature: -20 to 60 degrees celsius

Downloads

Download Datasheets:

• LOXMML2400LZ Datasheet
