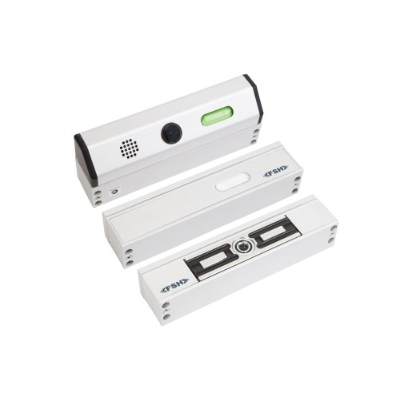

MEM Retail Loss-Prevention Lock, 680kg, Delayed Egress & Sounder, 12/24V DC

The MEM2400EXT high security Loss-Prevention Locking Device is a unique product designed for retail applications and the like, where exit doors require an optional Egress Delay function as well as comprehensive monitoring. The MEM2400EXT is based on the patented MEM technology and incorporates both magnetic and mechanical design principles to achieve an exceptional holding fove of up to 680kg, whilst being 75% smaller than a standard 600kg Electro Magnet.

Features:

• Egress Delayed Function (optional) and Early Warning Alarm (EW)
• Slimline design
• High holding force of up to 680kg and releases under side load of up to 70kg
• Dual-voltage 12/24V DC with low power consumption (current @ 24V/140mA)
• 4 hour fire rated
• Full monitoring Lock Status Sensor (LSS) and Door Status Sensor (DSS)
• Light Panel (LP)

Downloads

Download Datasheets:

• FSH-MEM2400EXTS Datasheet
• FSH-MEM2400EXTS Installation Guide
