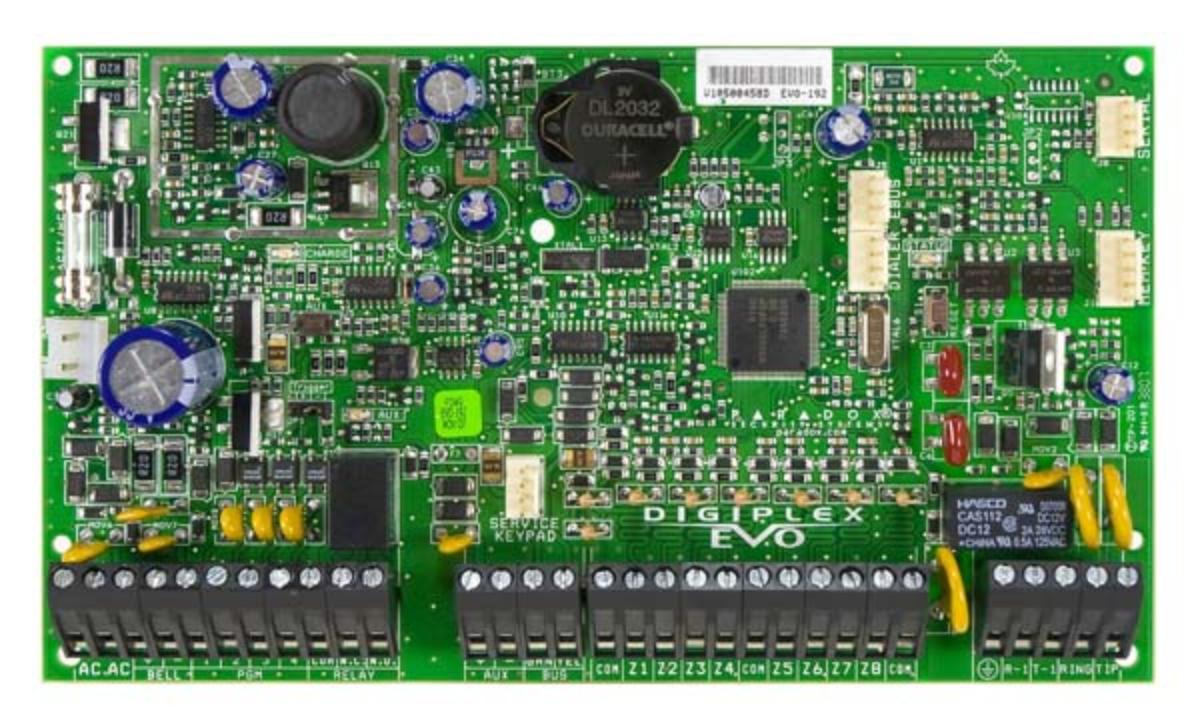

Paradox EVO192 Digiplex EVO 192-Zone Control Panel

Paradox EVO192 Digiplex EVO 192-Zone Control Panel

Availbility: In Stock
Product Code: PRX-EVO192-R2Q
Regular price $135.00
Regular price $185.00 Sale price $135.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Free Shipping on
Order Over $400*
Secure Online Payment
with Tax Invoice
Manufacturers
Return & Warranty
Authorised Australian
Partner With Tech Support
View full details

Paradox EVO192 Digiplex EVO 192-Zone Control Panel

Features:

    • 8 on-board zones (16 w/ zone doubling)
    • Built-in access control features
    • Supports PCS Series, IP Module (IP150) and Voice Module (VDMP3)
    • In-field firmware upgrade via 307USB, Babyware and WinLoad
    • Selectable input resistors for EOL and Tamper
    • Compatible with NEware V4.0 or higher
    • Automatic Daylight Savings Time feature
    • PGM1 can be used as a 2-wire smoke input
    • Program remote controls using the master or installer codes
    • Built-in real-time clock backup battery
    • 1.7A switching power supply
    • 1 supervised bell output, auxiliary output and telephone line
    • Patented 2 opto coupler dialer circuit - the most reliable dialer in the industry (US Patents 5751803, RE39406)
    • Push button software reset (reset to default values and restart)
    • Push button to activate or deactivate the Auxiliary output
    • Fits in a 28cm x 28cm x 7.6cm (11in x 11in x 3in) metal box
    • The EVO series share the same programming for easy panel substitution
    • EN 50131 grade 3

    Downloads

    Download Datasheets:
