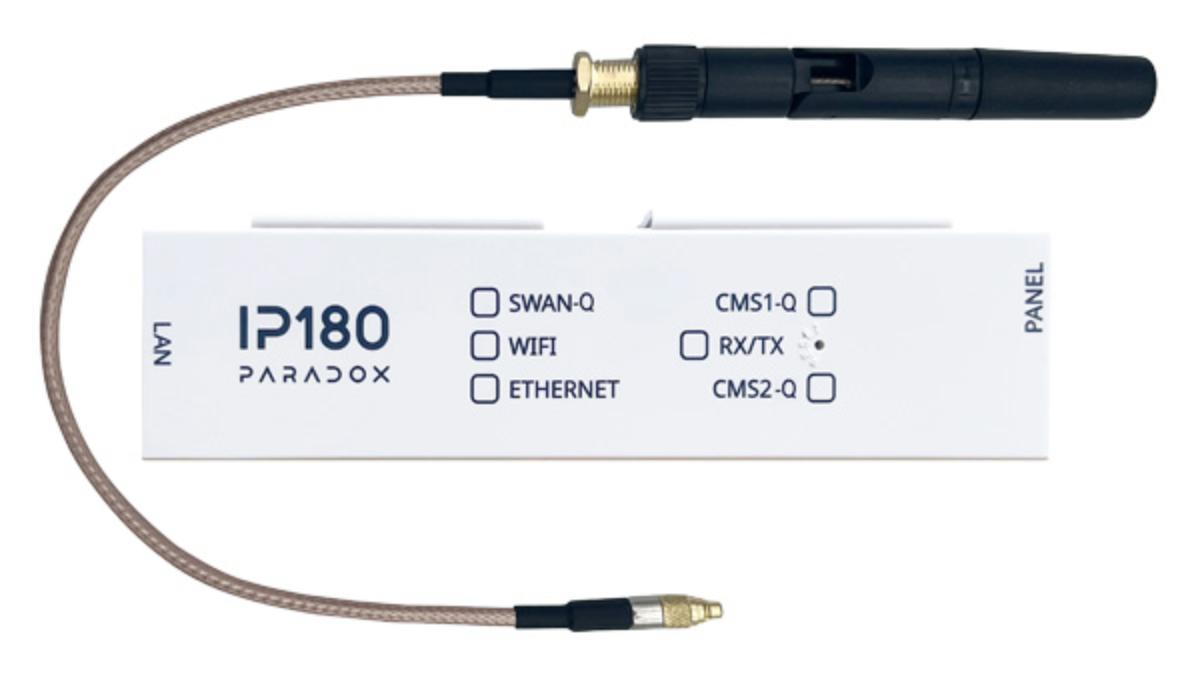

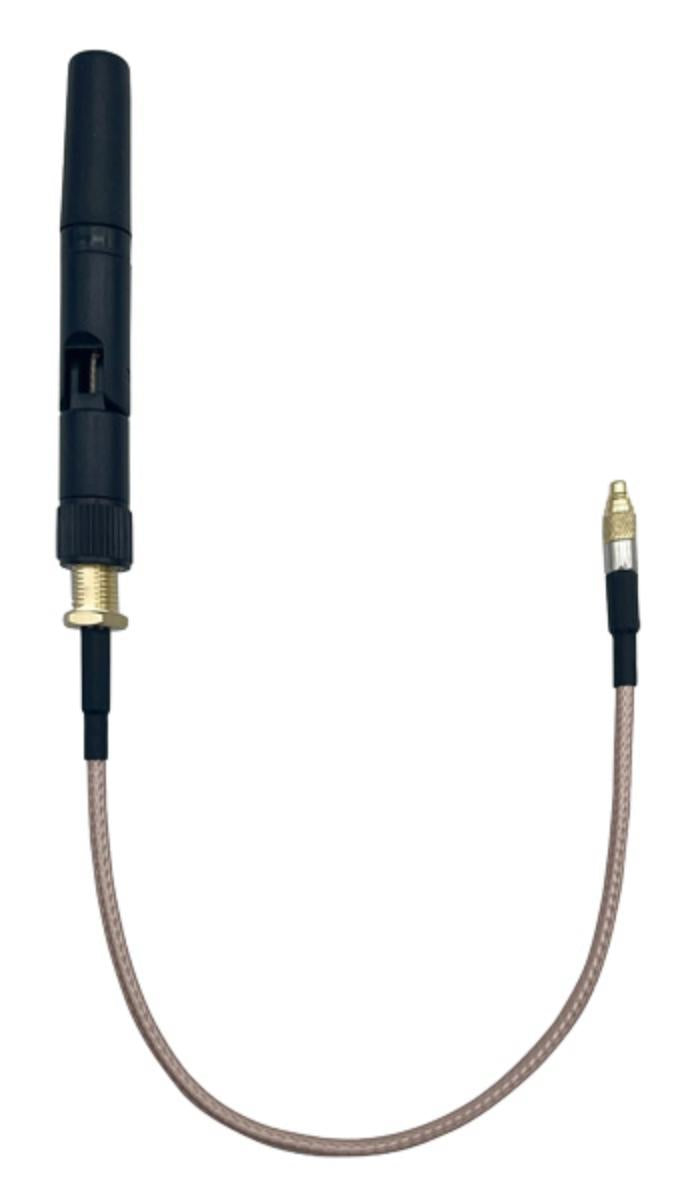

Paradox IP180-IPW Internet Module MQTT, Four Receivers, Ethernet, and Wi-Fi Antenna-With WIFI Antenna

Paradox IP180-IPW Internet Module (MQTT), Four Receivers, Ethernet, and Wi-Fi Antenna-With WIFI Antenna for BlueEye App

Features:

•  Compatibility Panels: Paradox EVO, MG+, SP+. Notes: Subscription Base: NO (limited functionality, only Security and Control tabs can be accessed), Subscription Base: YES (Security and Control, Doorbell and Events tabs can be accessed)
• Compatible with BabyWare - V5.4.3 or higher
• Improved and stable communication
• Polling with Swan at 15-minute intervals
• Swan disable feature for communication in closed networks
• Safe upgrade feature
• Internal diagnostic logs
• SSL support for sending secure email messages
• EN50136 compliant
• Compatible with Paradox Spectra, Magellan and EVO control panels
• Supports HTTPS
• Easy installation with built-in clip for mounting
• Report control panel events via IP to the Paradox IPR512 GPRS/IP monitoring receiver
• View live status of all zones and partitions via Insite Gold app
• Very low bandwidth consumption
• Enccryption: MD5 and RC4
• Current Consumption: 100mA
• Input Voltage: 13.8VDC, supplied by the panel serial port
• Dimensions: 10.9cm x 2.7cm 2.2cm

Downloads

Download Datasheets:

• PDX-IP180 Datasheet
• PDX-IP150+ Installation Guide
• PDX-IP150+ Web Programming Guide
