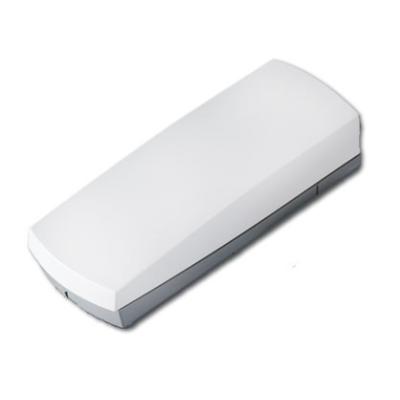

Paradox Wireless PGM, 2-Way, 433MHz

2-Way communication allows the 2WPGM to receive commands from Magellan Transceivers and then confirm the command. Backup Alarm Reporting option (activates PGM output if communication between the Magellan All-In-One- Consoles and the 2WPGM is lost)

Features:

• 1 fully programmable 5A relay output
• Deactivate PGM after event or timer
• Can be powered by the PA12
• Universal transmitter input (N.O/N.C)
• Typical wireless range with MG6160 and MG6250: 35m
• Typical wireless range with MG5050 and RTX3: 70m
• Universal transmitter input (N.O./N.C.)
• Anti-tamper switch

Specification

• Requires AC or DC input voltage (6V AC to 16.5V AC or 5V DC to 30V DC)
• Wireless frequency: 433MHz
• Dimensions: 12.5m x 4.6cm x 2.5cm

Download

Installation Guide of PDX-2WPGM
