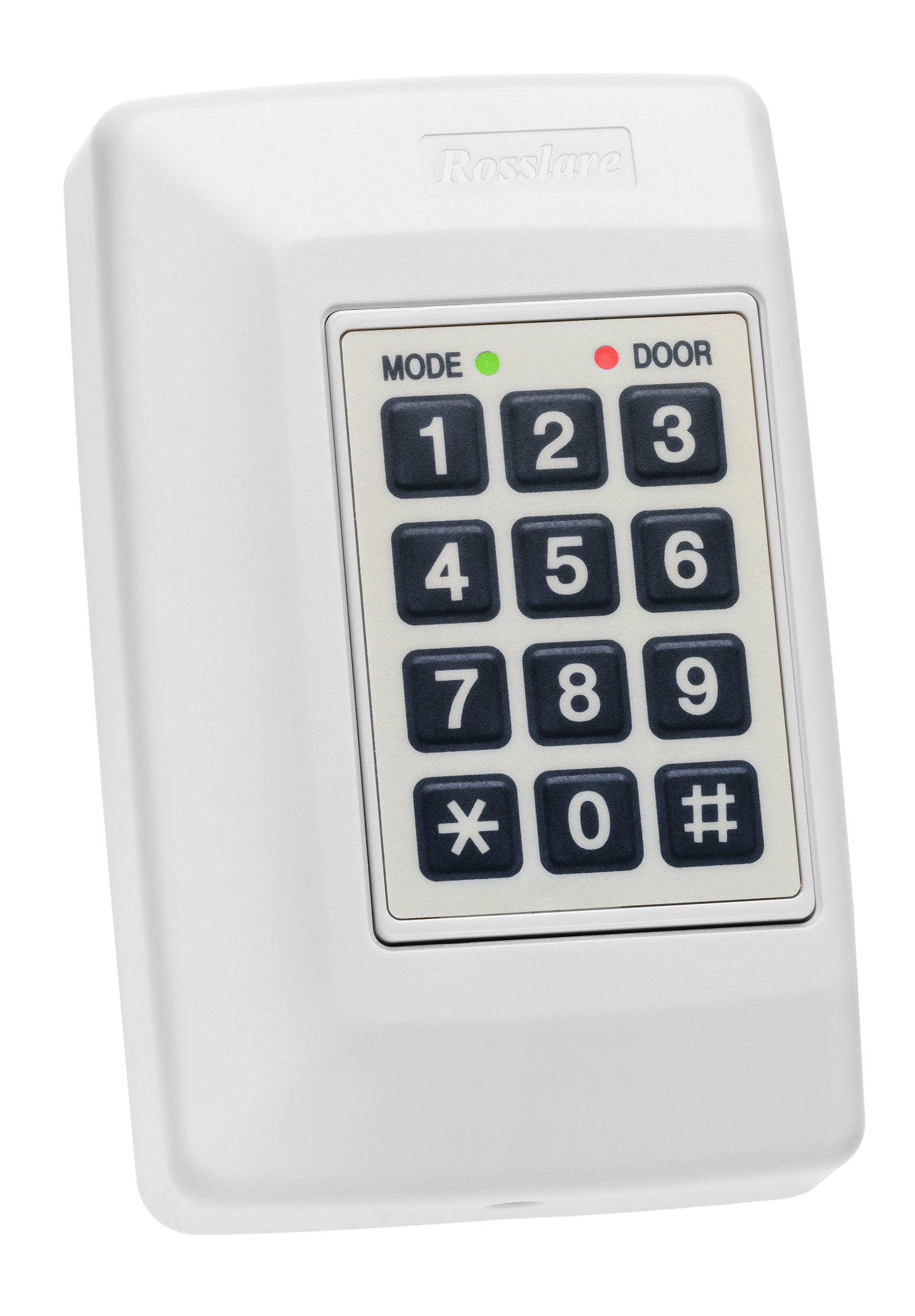

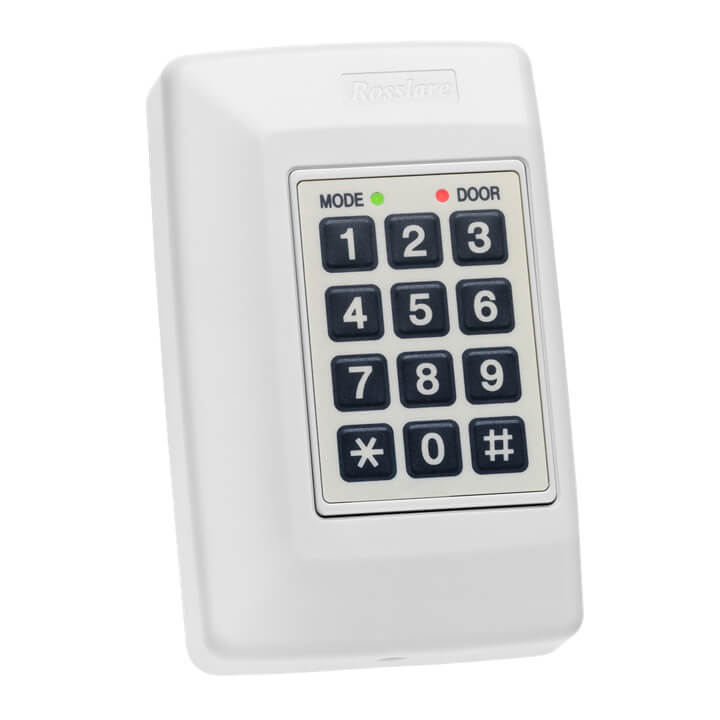

Rosslare AC-115, Compact Network Single Door Controller

Features:

• 2400 users
• Quick and easy to install, All-in-One
• Supports two standard Wiegand 26-Bit readers (PIN only, PIN+PROX, or PROX)
• Internal power supply for readers, lock and inputs, with a charger for external battery backup
• Real-time clock with backup battery lasts up to 10 years
• Cable-cut tamper detection function for readers and cover tamper detection for the main unit
• Bell, chime & alarm annunciator with audible tones
• 3 selectable security modes and 3 programmable user levels
• AC-115 can work as an independent single-door PIN controller and does not require the PC
• For Microsoft Windows® 98/ME, and XP/NT/2000
• A simple and intuitive user-friendly PC interface reduces complexity of managing access control
• Long range RS-485 network connects to the PC using a MD-14 RS-232 to RS-485 converter (one per network)
• Enables management of user data, photo with custom fields, access rights, alarms, strike time, and door mode from a central location for up to 8 networked doors
• Produces reports from acquired data, such as entry and exit times, and by alarm type with filters for users, location, and time
• Available in a large selection of languages
